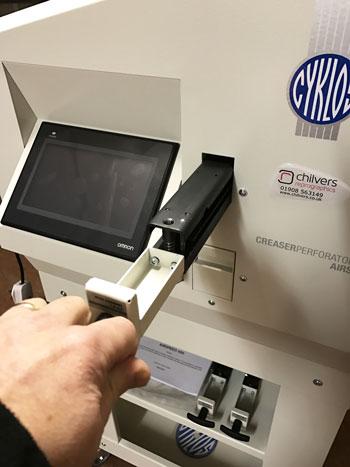

Cyklos Airspeed 450

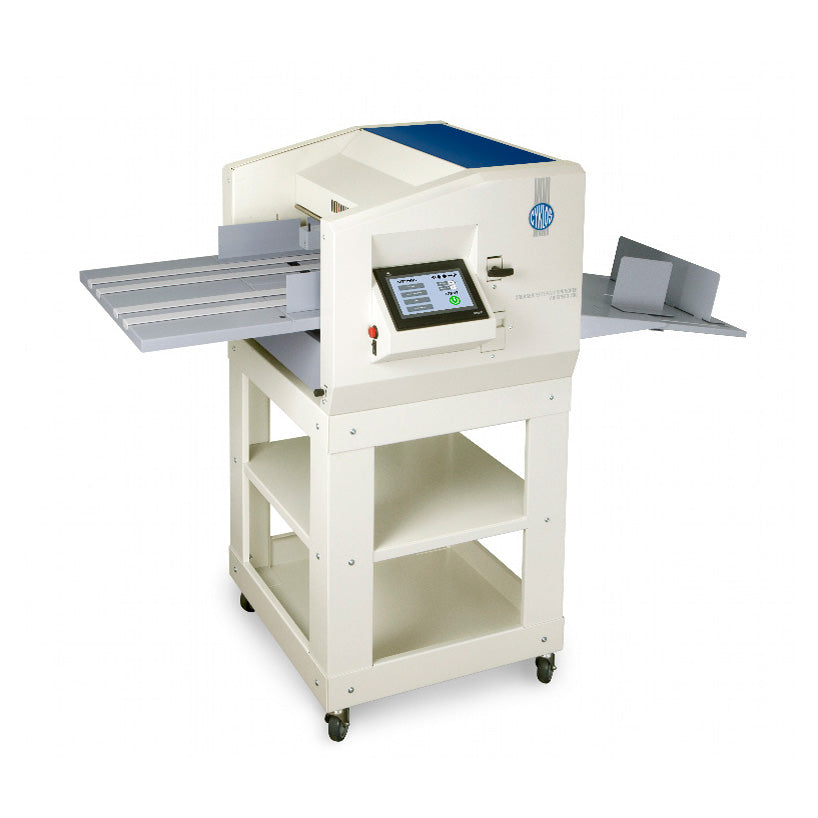

The AIRSPEED 450 is a multifunction versatile and easy to use air feed machine for processing all types of paper or card accurately and reliably with the unique benefit of 'quick change' tooling for creasing, perforating, partial perforating and even punching for wire binding or calendar binding.

Being able to run paper from 80-400gsm and with features that include 'cross directional' perforation, extra thin creasing and punching euroslot or wire/calendar format, gives it a unique edge and versatility in any digital print finishing environment.

This machine comes with 2 x Creasing Tools, 1 x Perforating Tool and 1 x Rotary Perforating unit.

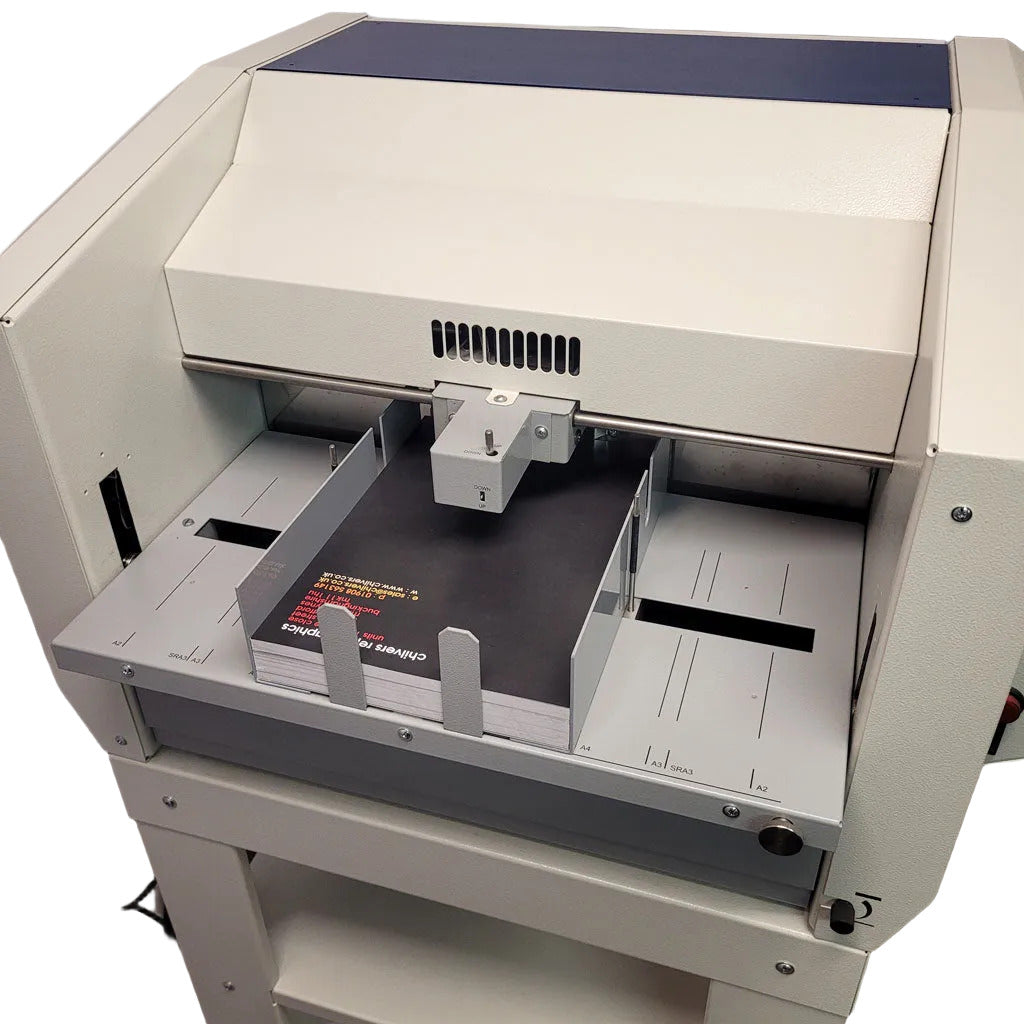

• Unique air feed system feeding sheets between 80-400 gsm
• Large work table and 456mm working width

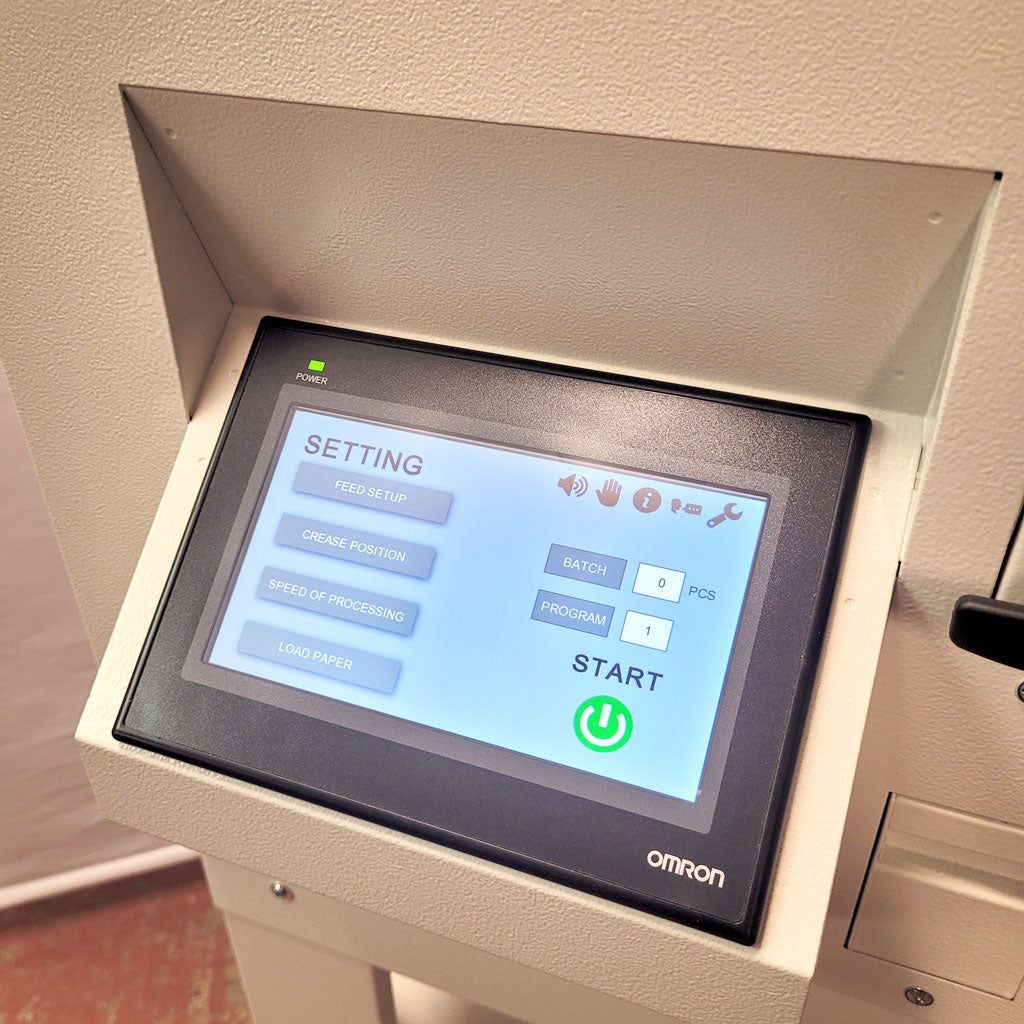

• Large 7" control screen with easy settings
• Programme/Job Storage
• Two crease width options
• Easy exchange tooling, slide in slide out
• Input up to 99 custom programs
• High quality perforation
• Skew adjustment
• Pre set crease positions
• Extra rotary perforation to enable cross direction
• Batching

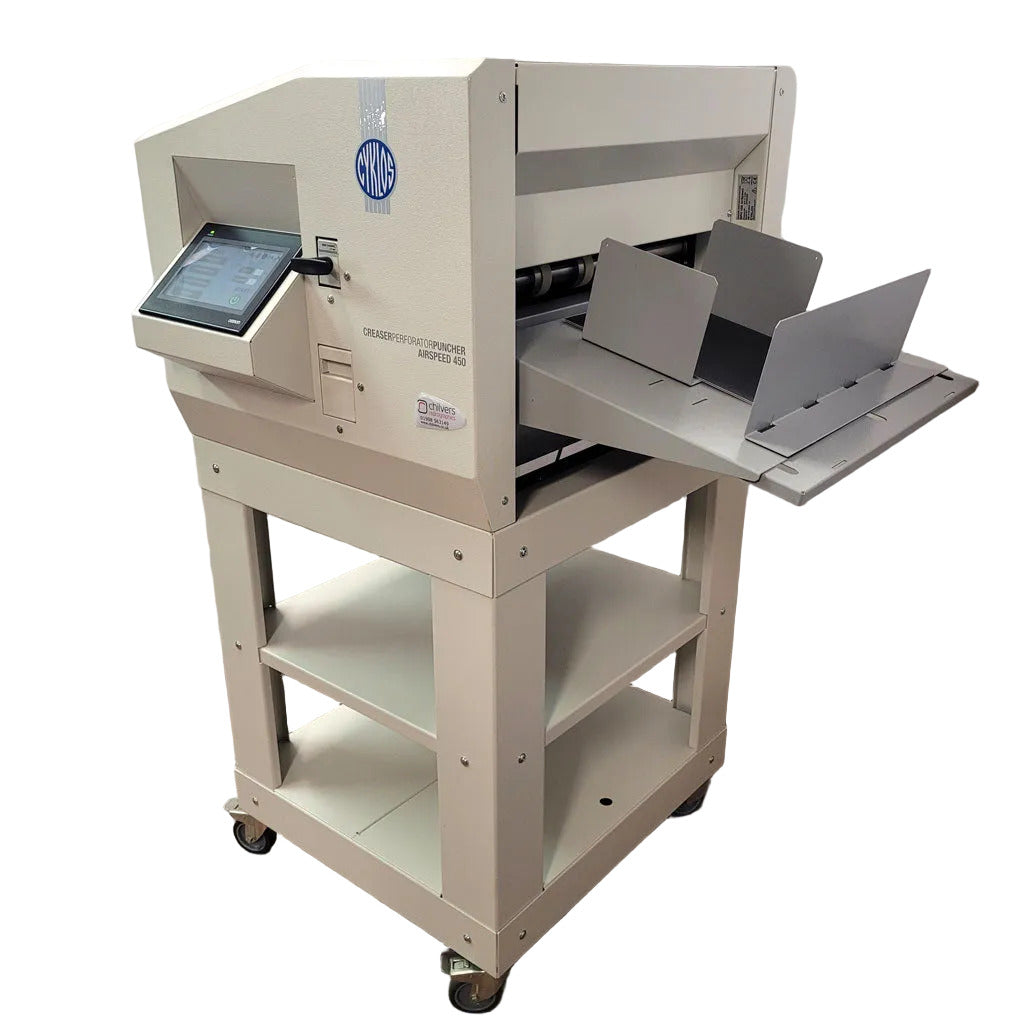

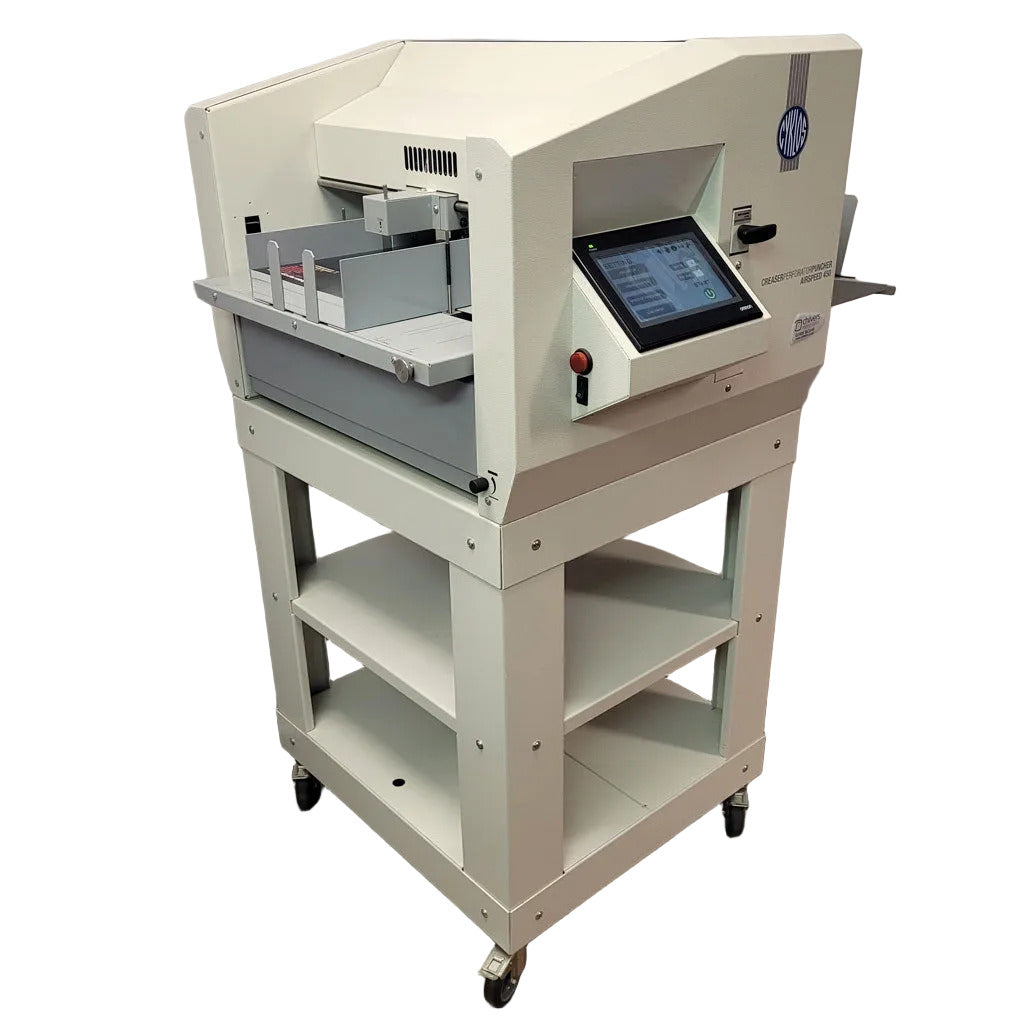

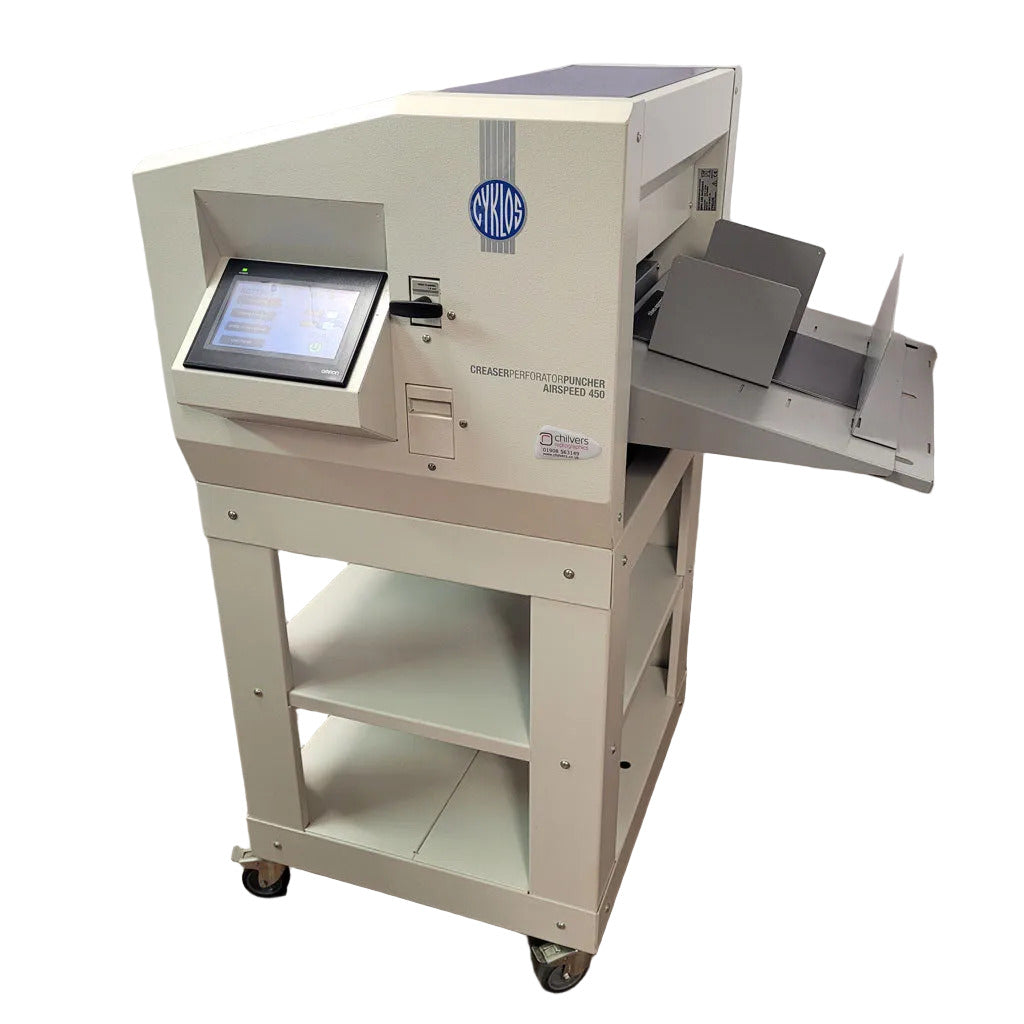

• Compact footprint with mobile stand as standard
• Optional cutting & kissing
• Optional Punching for euroslot, 2:1 wire binding, 3:1 wire binding and Calendar wire binding
• Optional partial perforating tool
• Quality design and manufactured in Europe

Optional on-line folder unit for 80- 350gsm

• Working Width - 115-456mm
• Width of Crease - 1.0/1.9mm
• Min./Max. Crease Distance - 1/999mm
• Paper Weight - 80-400gsm (creasing) 80-250gsm (perforating)
• Max. Number of Creases per sheet - 15
• Max Number of strike perfs per sheet -15
• Max. No of rotary Perforating wheels with adjustable pressure - 13 (one comes as standard)
• Pre Set Positions - 1/2, 1/3, 1/4, gate, book spine
• Feed Capacity - 70mm
• Speed - 3000 sheets A4/h or 4300 sheets A4/h rotary
• Weight - Nett 140kg Gross 189kg
• Dimensions - 1320 x 755 x 1225mm
• Voltage/Frequency - 230v/50Hz

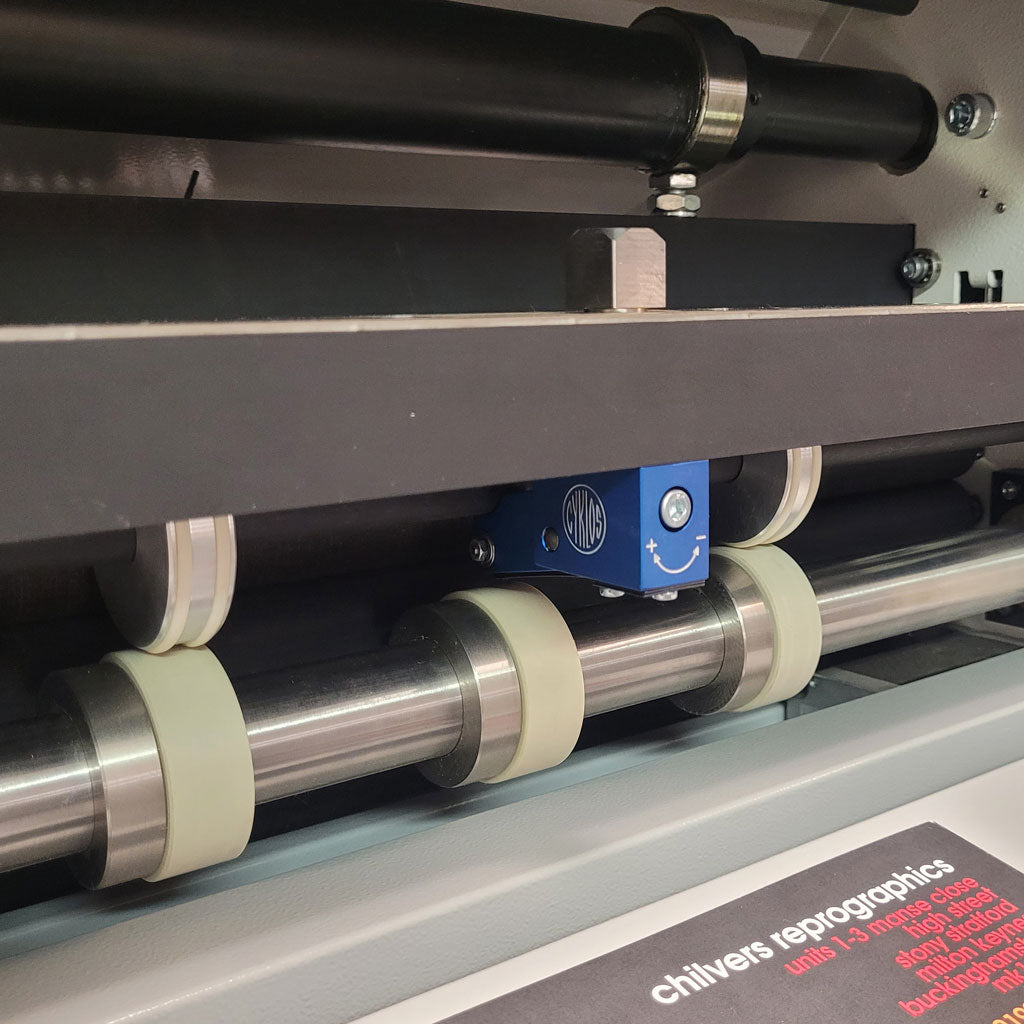

Up to 13 adjustable rotary perforating wheels

9TPI Perf Vs 30TPI Perf

Optional partial strike perforating tool

Partial strike kit offers many finishing options

Airspeed feed in extension set

Optional Airspeed Punching Tools - Click here to view

• Partial strike perforating tool includes x3 80mm, x2 160mm and x1 240mm knives.
• Punching tool - Square 5x5 mm 2:1 for wire bind
• Punching tool -Square 6x6 mm, 2:1 for wire bind
• Punching tool - Square 4x4 mm 3:1 for wire bind
• Punching tool - Square 4x4 mm 3:1, calendar punchround, dia 4 mm, 3:1
• Punching tool - round dia, 4 mm, 3:1, calendar punch
• Euro Punch tool
• Oval Punch tool 4x5mm, 6,3mm
• Perforating
• 9tpi Rotary perforating wheels
• 30tpi Rotary perforating wheels
