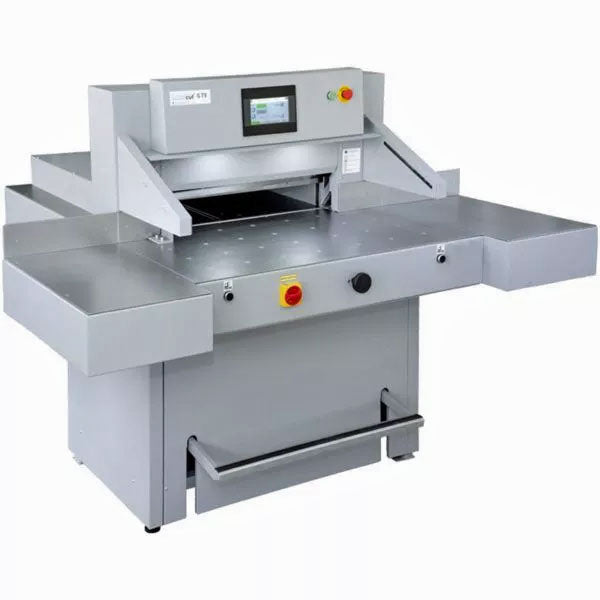

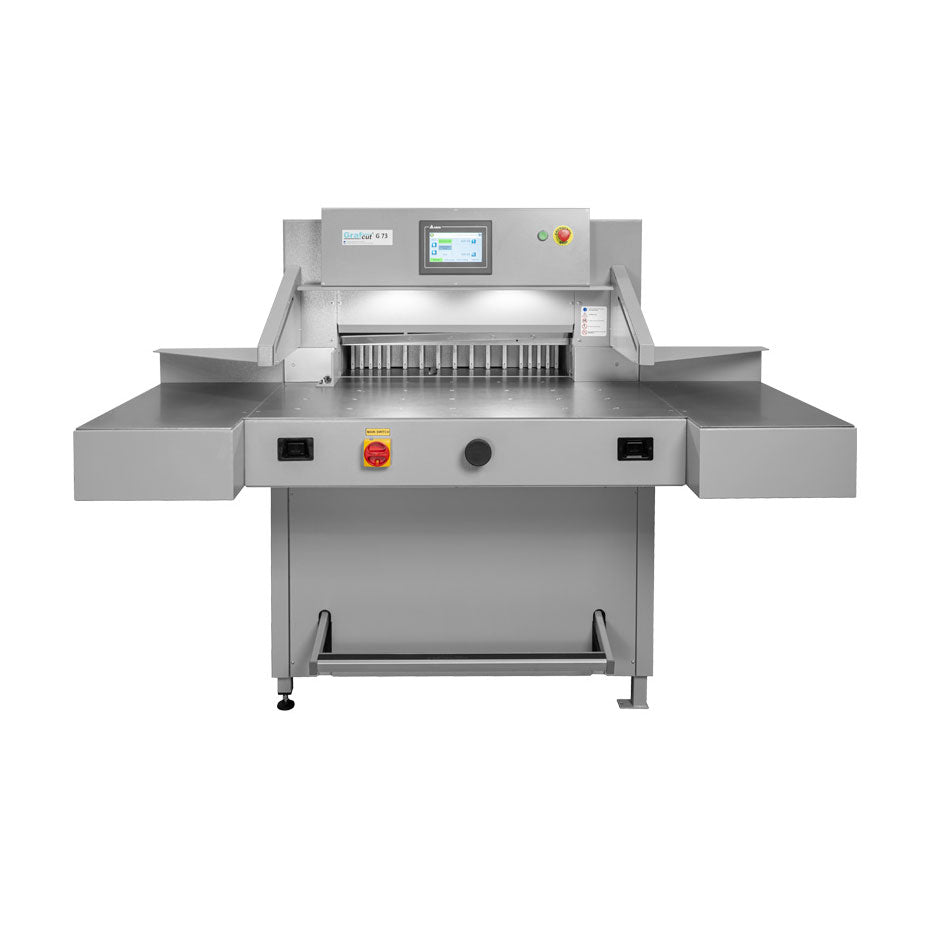

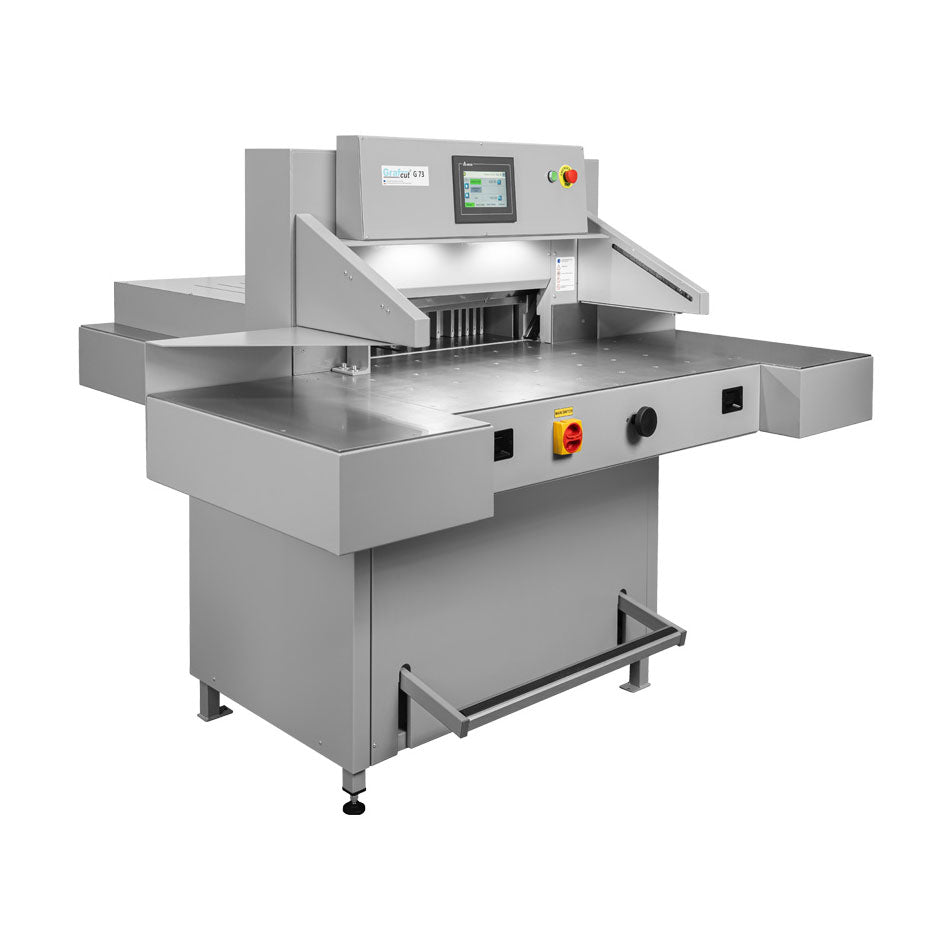

  • Grafcut G73 Guillotine

    The Grafcut G73 guillotine is a solidly built robust and easy to use guillotine.
    It's large colour touch screen controls all adjustable aspects of the guillotine including back-fence adjustments, size calculations and memory store as well as incorporating blade change reminders and service information to keep your guillotine in perfect order.

    A 100 program memory with auto eject function (prevents your hands from going under the blade for document retrieval) removes the need to remember long sequences of cut patterns and means all your repeat jobs can be recalled in seconds.

    As always safety is assured thanks to the two-handed operation and InfraRed (IR) safety curtain that is fitted as standard.

    Grafcut guillotines are made in Europe with over 40 years experience.

    • Cutting Width - 730mm
    • Cutting depth - 710mm (program mode) 730mm (manual mode)
    • Cutting Height - 100mm
    • Smallest cut - 30mm without false clamp (60mm with false clamp)
    • Front table height - 925mm
    • High cutting accuracy - 0,1mm
    • Clamping pressure adjustment on touch screen
    • Foot pedal for material pre-clamping
    • User friendly, fully programmable 7" touch screen with 100 programs/100 steps
    • Programs can all be given full names
    • Measurement readout in cm or inches
    • Daily cut counter (re-settable) and total counter
    • Visual diagnostics of sensors and electronic components
    • Optical cutting line indicator
    • Stainless steel table surface
    • Option to add password, locking the guillotine
    • Side tables (dimensions 375 x 658mm) can be removed
    • Spare blade included
    • Jogger block, 5 cutting sticks, blade change cradle and tool kit
    • Optional air table

      Dimensions with side tables - 1855 x 1755 x 1460(H) mm
      Dimensions without side tables - 1105 x 1755 x 1460(H) mm
      Weight - 690 kg   3 phase 415V 32A power supply
