Used / Pre-owned Duplo DFC-12 Collator

*PICTURES COMING SOON*

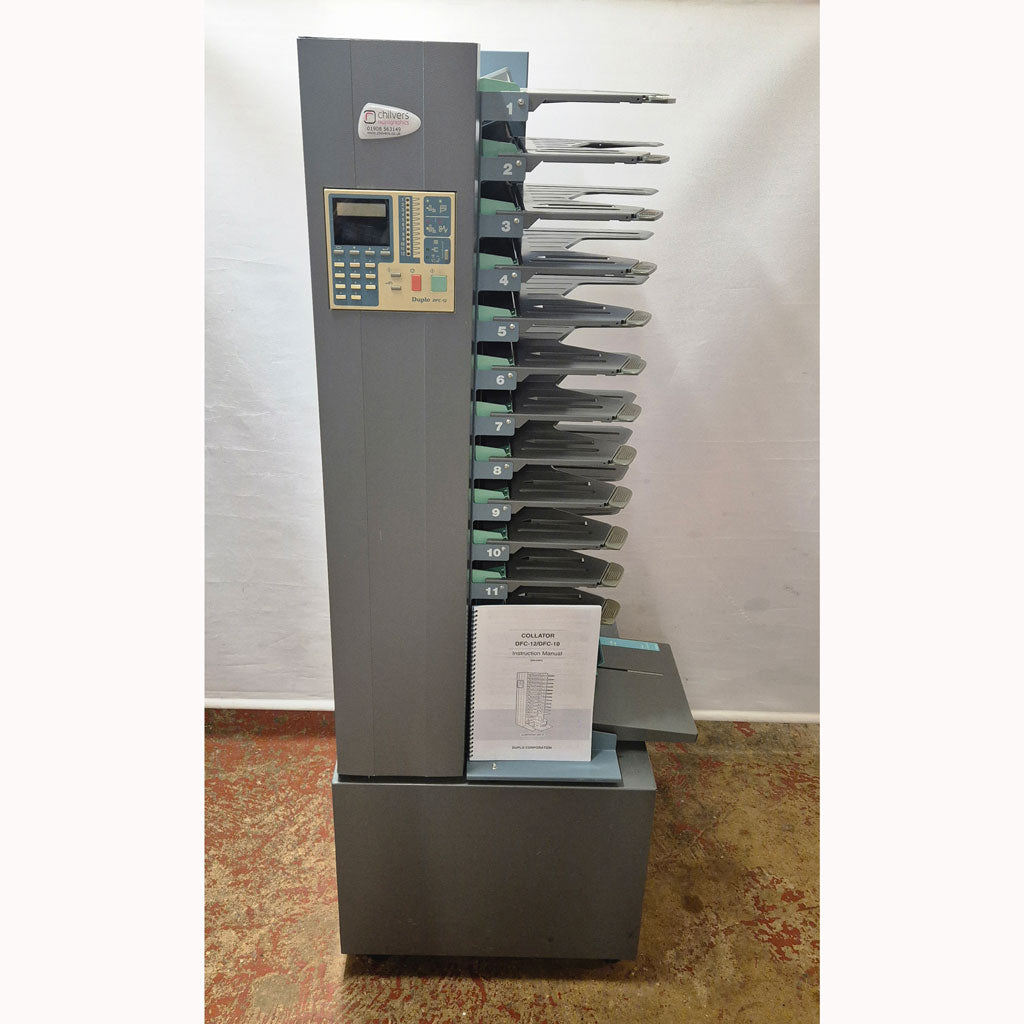

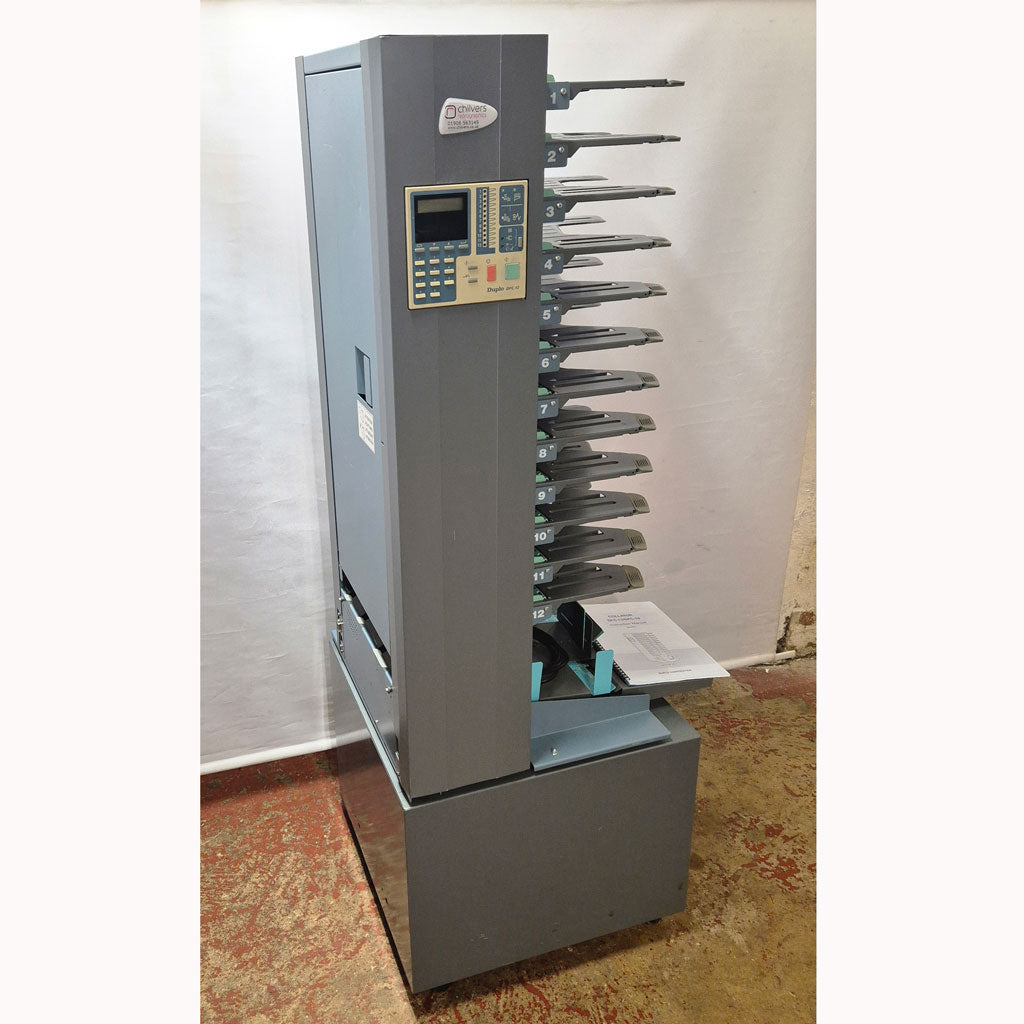

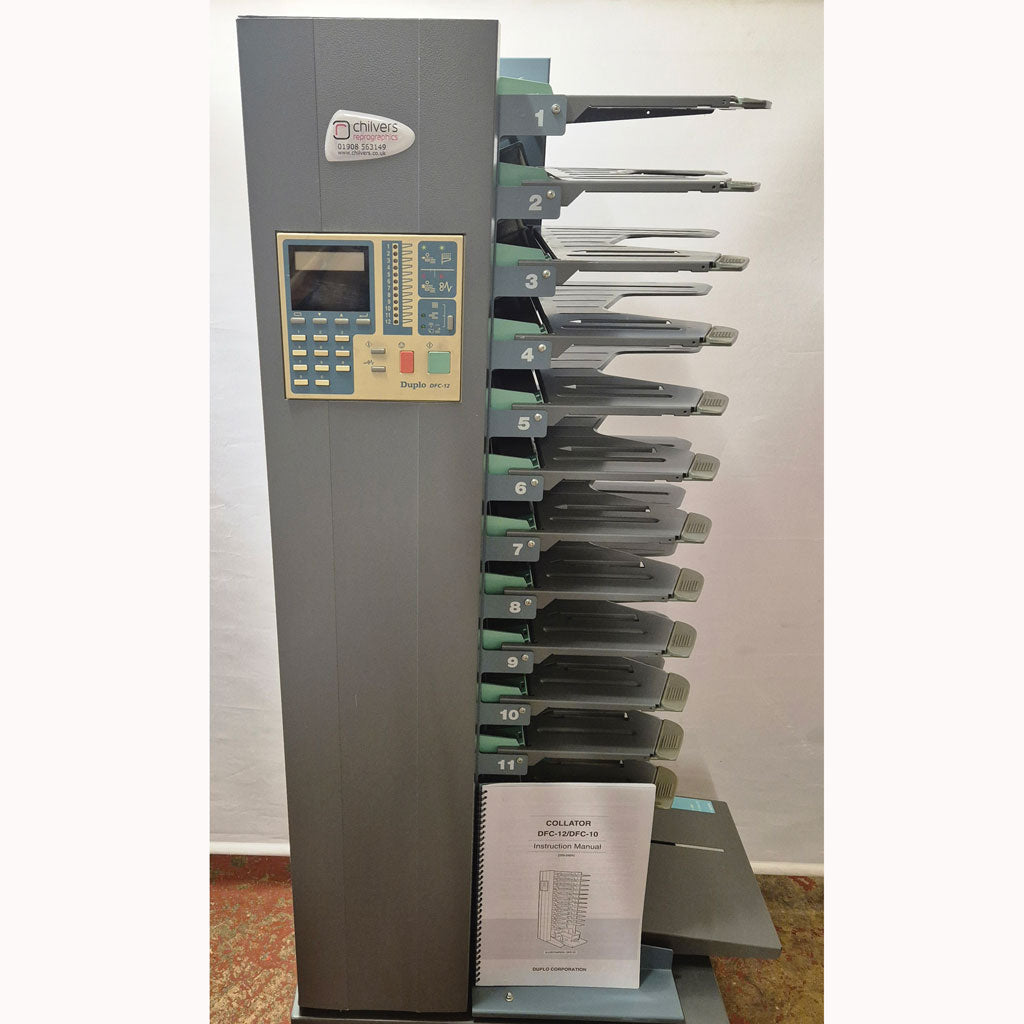

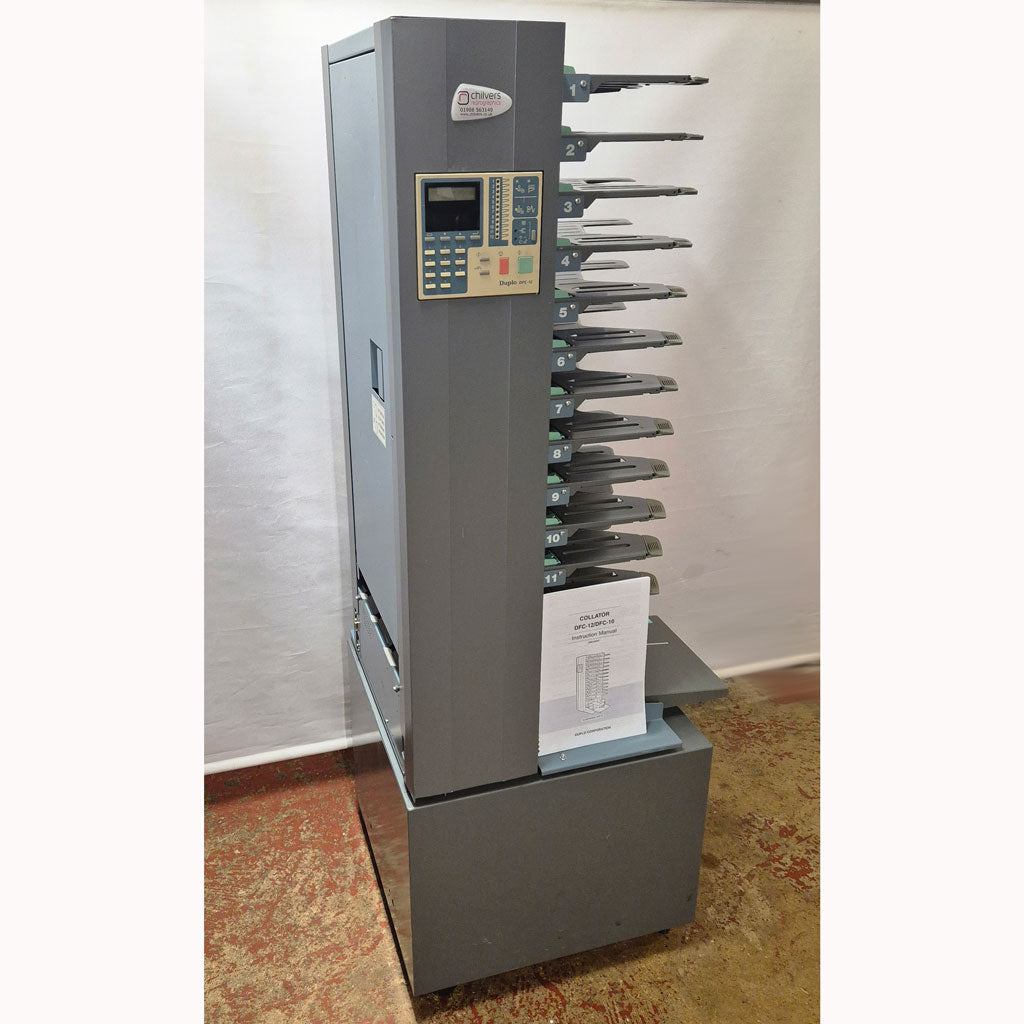

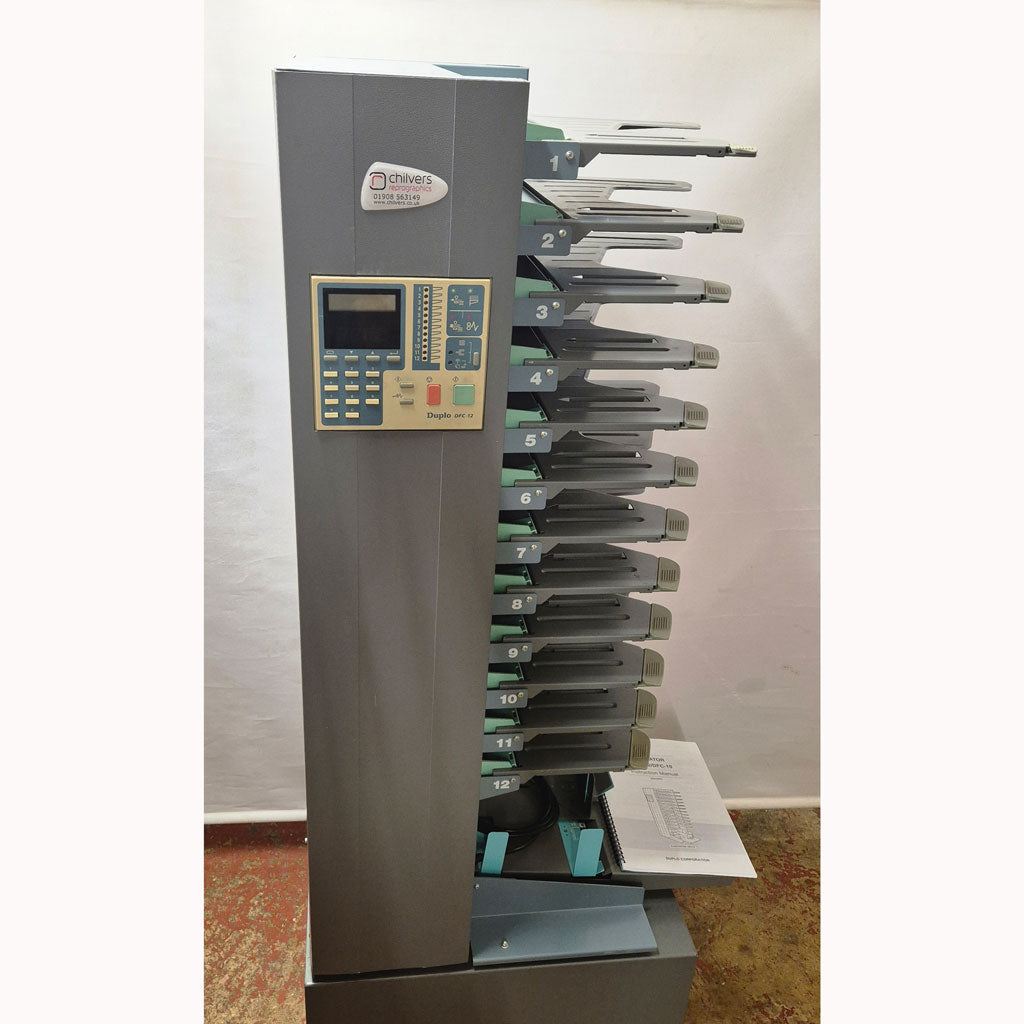

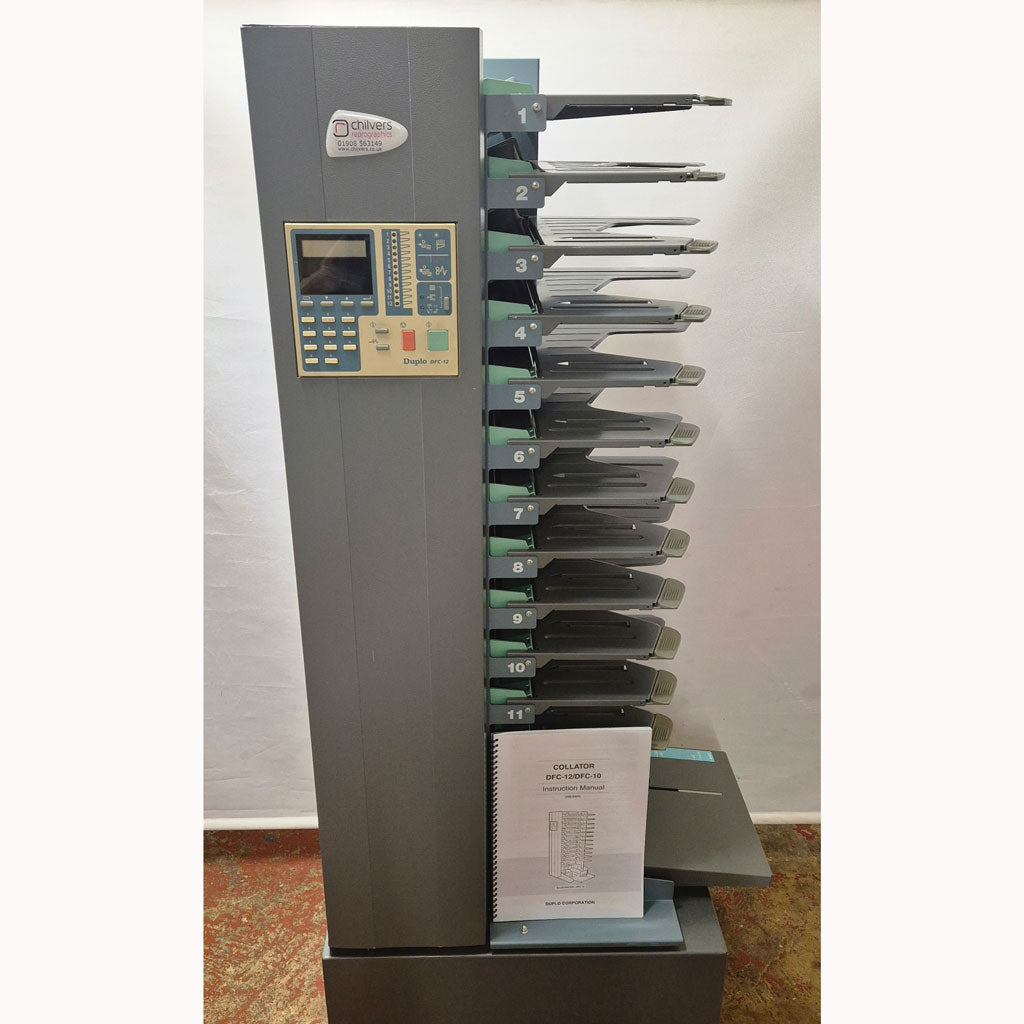

Used / Pre-owned Duplo DFC-12 collator is one of the most popular 12 station collators, this one is currently being fully checked, cleaned and serviced in our workshop.

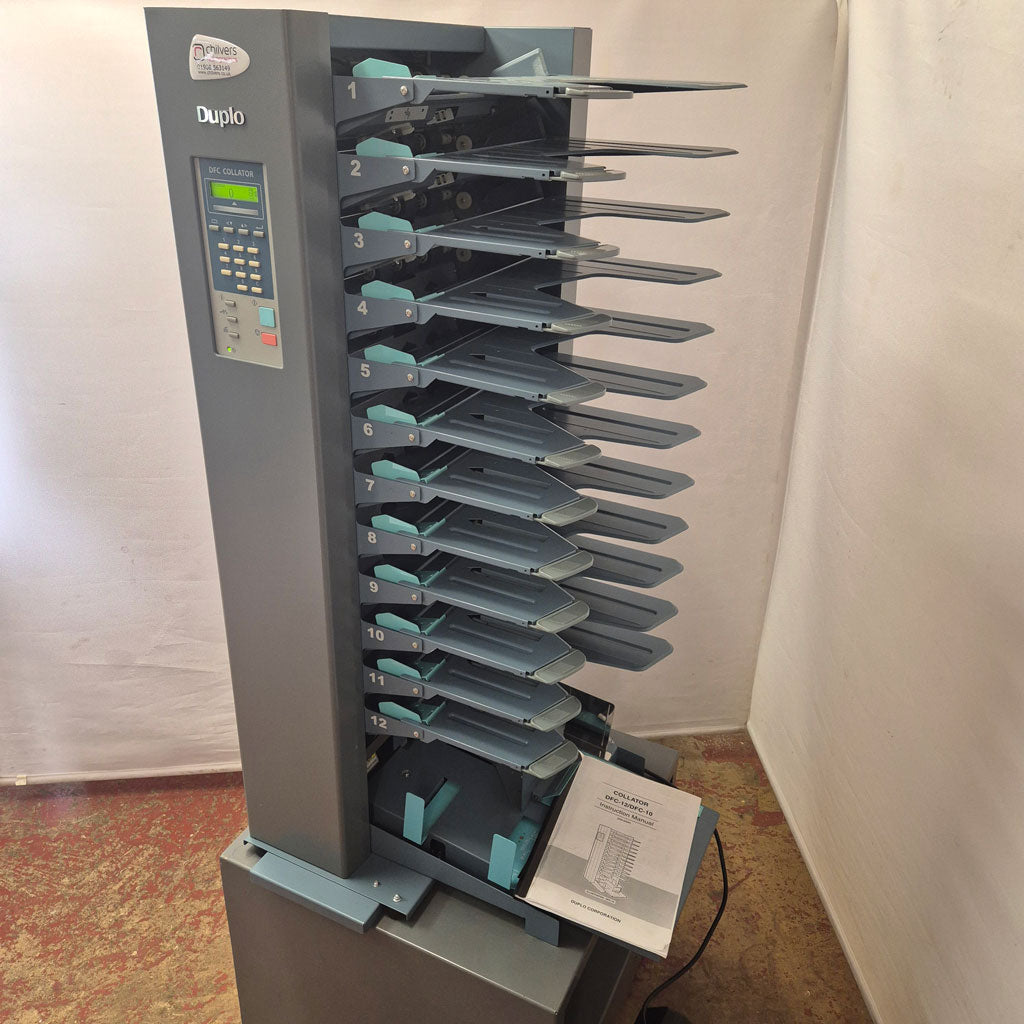

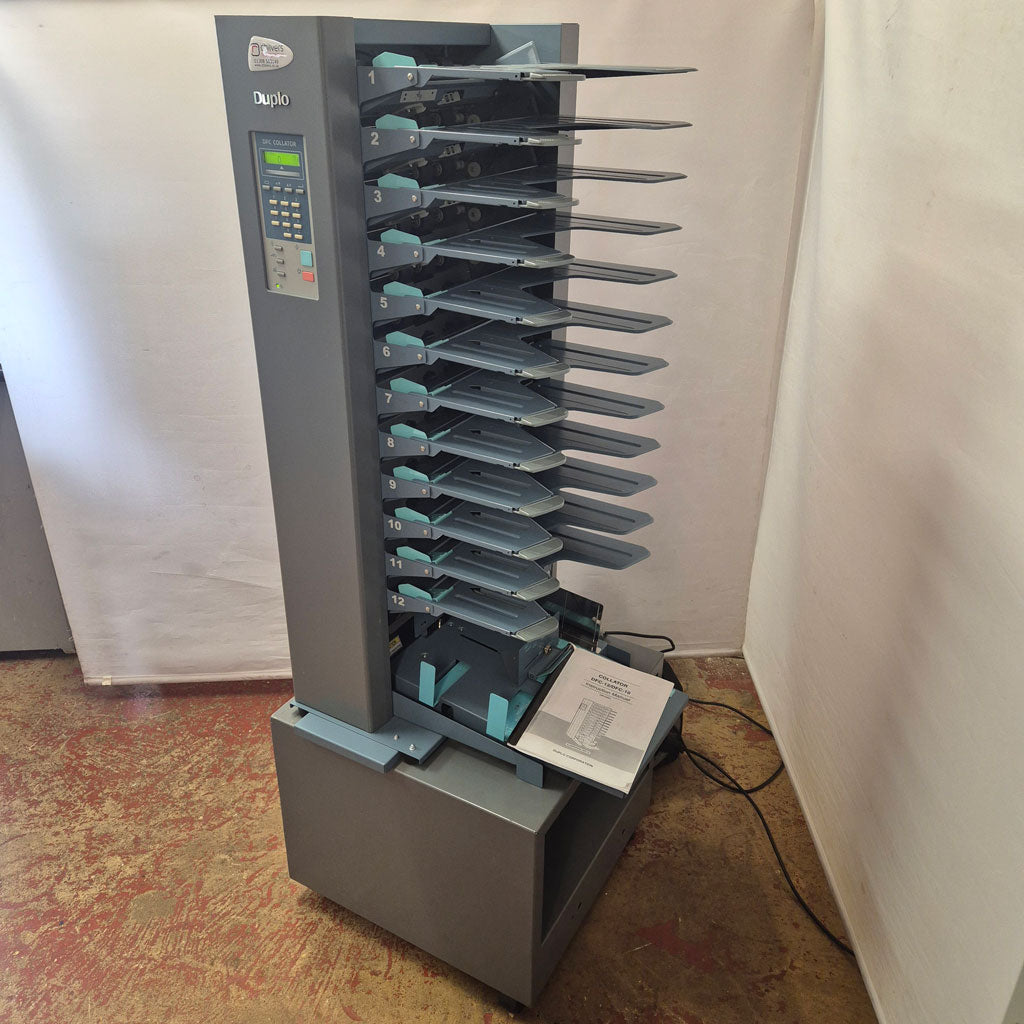

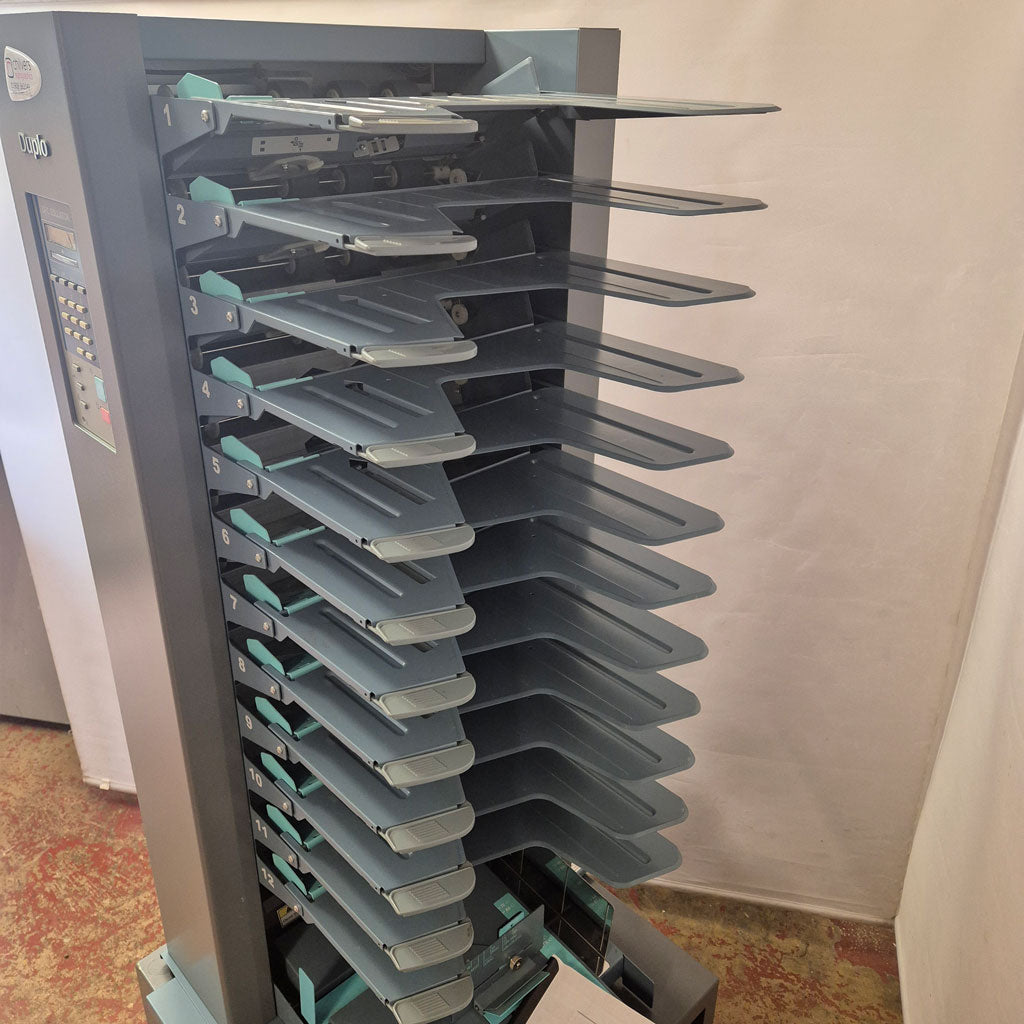

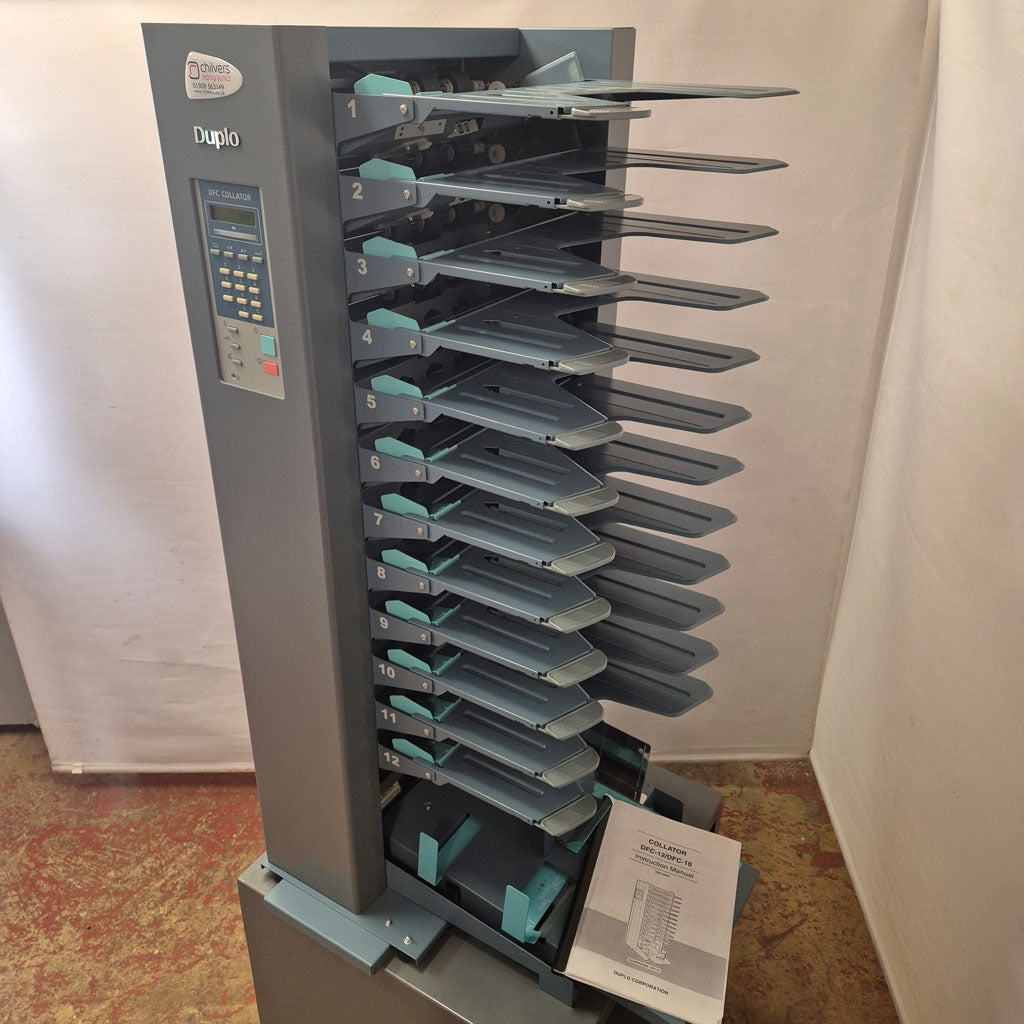

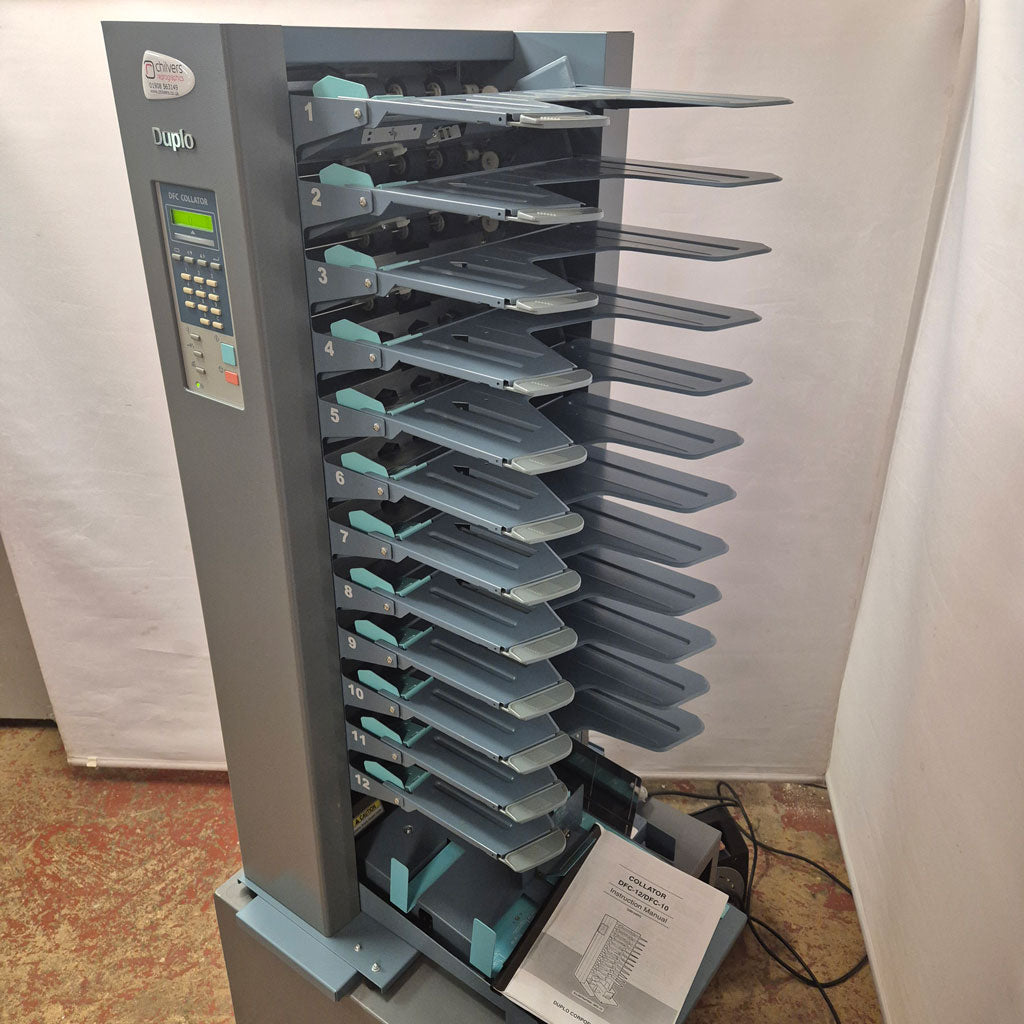

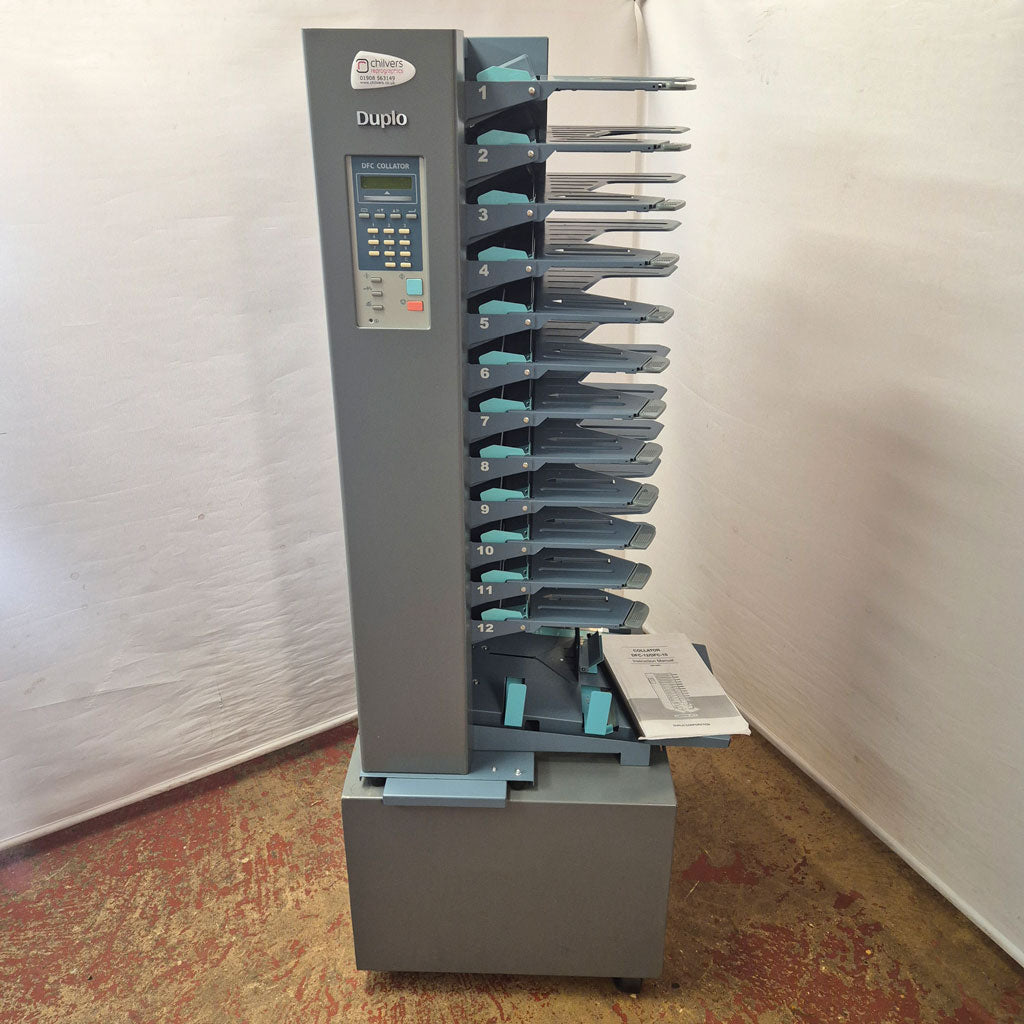

This 12 station friction fed collating unit (on a stand) can work alone or as part of a bookletmaking system.  The three-wheel feed system provides reliable feeding of a wide range of material, including NCR paper and certain coated stocks.

Highlights

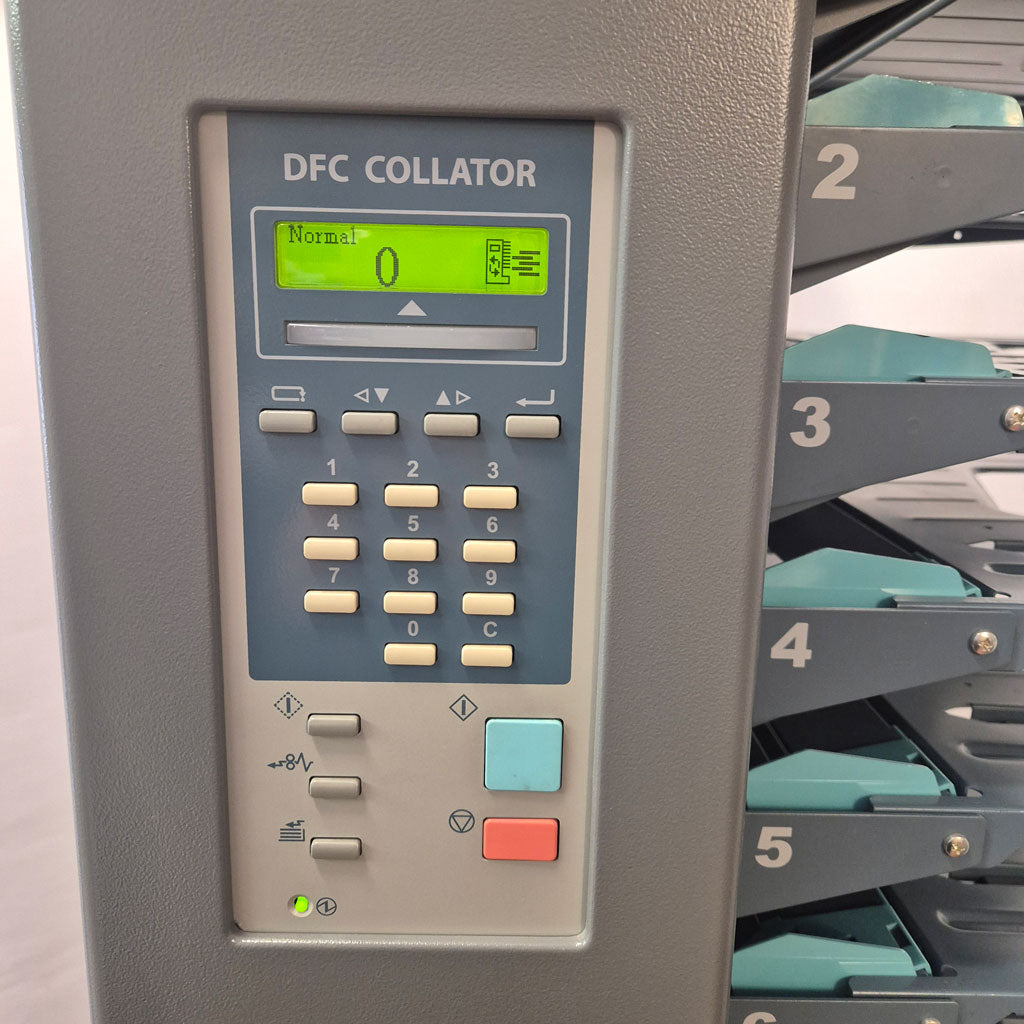

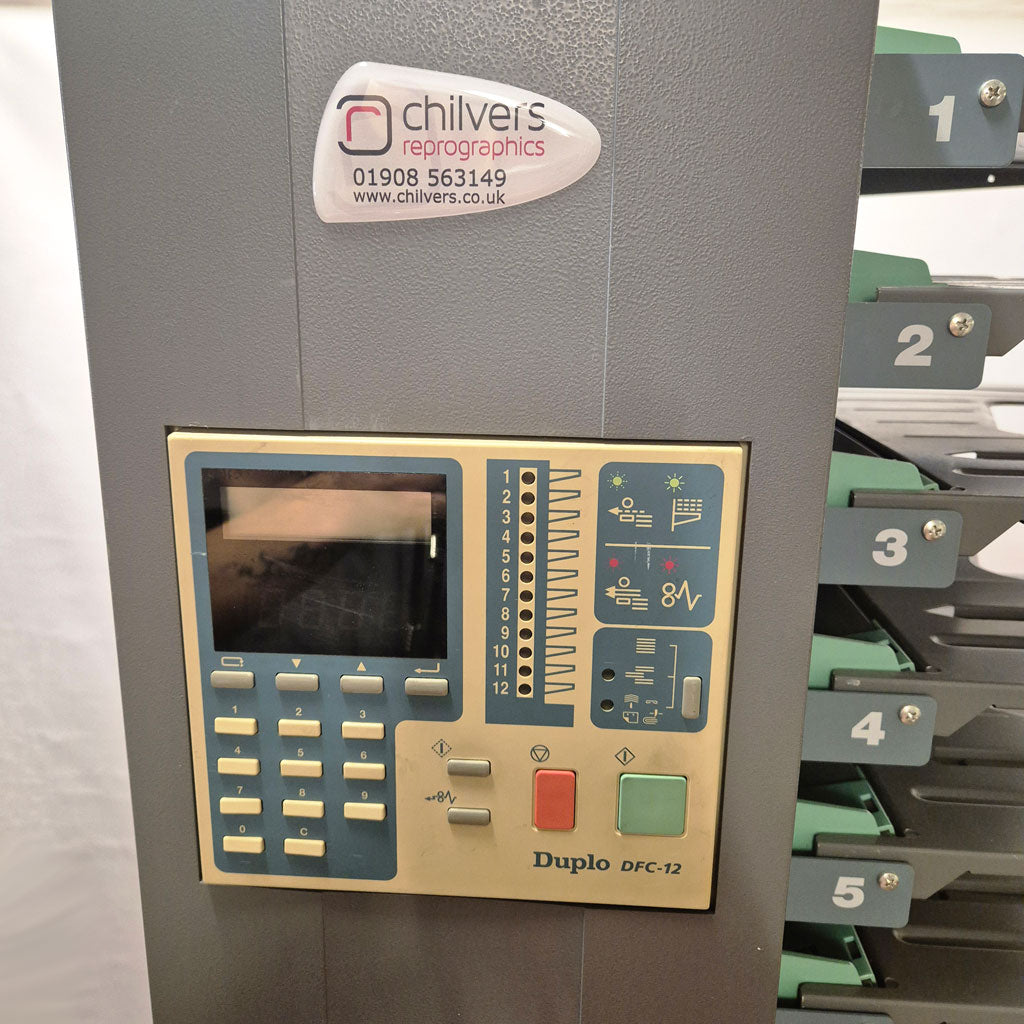

• User friendly control panel offers several programmable settings
  (Auto bin select, normal mode, interleave mode, block mode, alternate mode).

• Triple wheel feeding system provides maximum contact for flawless feeding
• Offers offset collating or straight according to the job
• Total counter - Record the number of sets collated or input how many sets you require and the machine will count down.
• Paper range, subject to type, covers 40-130gsm
• Sensors to detect empty bins, doubles and paper jams
• Adjustable separator and tray pressure on each bin to cope with different materials
• Production speed up to 3,900 sets an hour
• Min sheet size: A5 (148 x 450mm)
• Max sheet size: SRA3 (320 x 450mm)

Typical Applications

• Booklets
• Programmes
• NCR sets
• Manuals
• Product guides

Why buy? For business owners

Robust construction and ease of use make the DFC-12 an ideal entry level collator which can build into a complete booklet making system. The feed system provides reliable paper handling, to include some coated papers. The control unit is simple to understand and offers programmed settings for standard or repeat jobs.

Why buy? For operators

Simple to follow control panel with programmable settings makes for ease of use. Bin capacity of 28mm to hold 260 sheets of 80gsm paper. Stack capacity of 70mm and automatic stop when capacity is reached enables unsupervised operation. Adjustable feeder pressure and three wheel feed system produces a trouble-free feeding system.

Weight: 75Kg
Dimensions: 820 x 560 x 1137mm

Please note the below video is for reference only and NOT the actual machine on sale. The only difference between the DFC-10 and DFC-12 is the number of stations.
