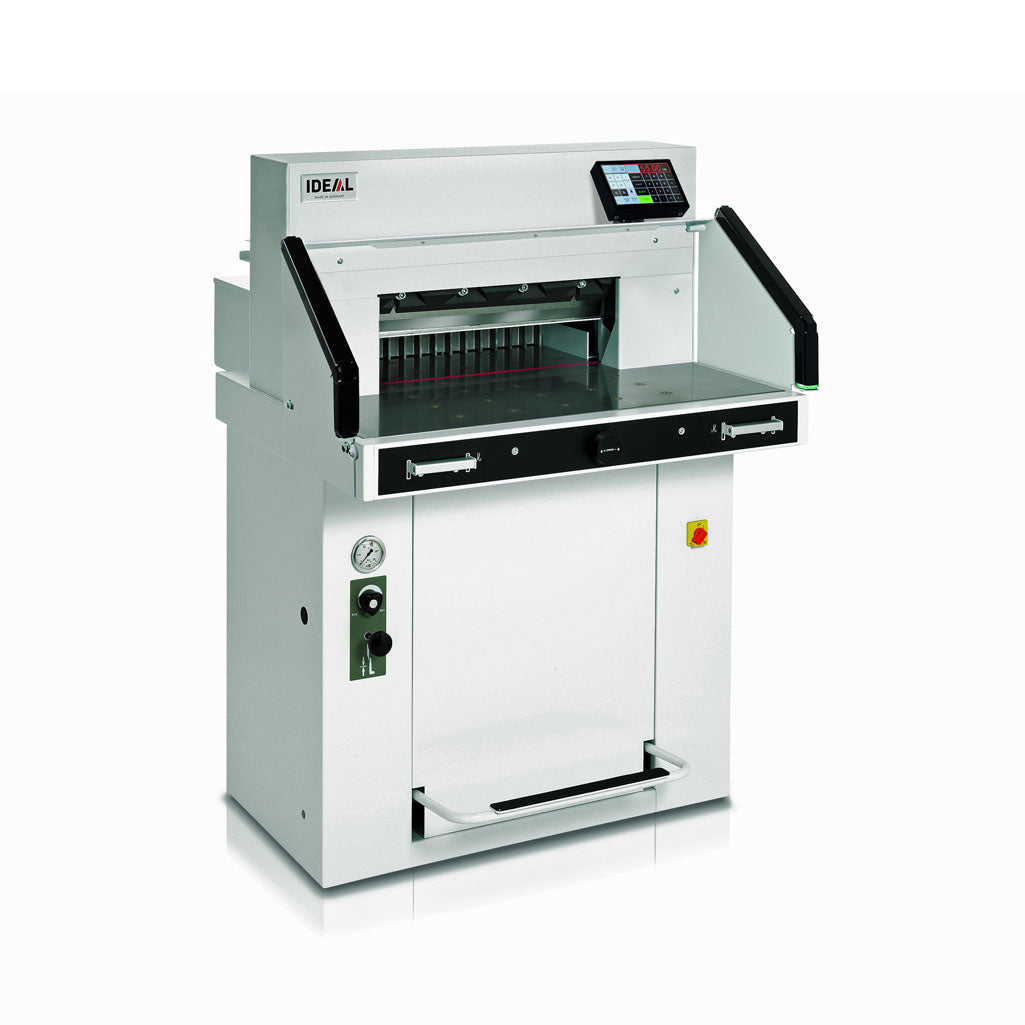

Ideal-EBA 5560-LT (Hydraulic) Guillotine

Download PDF

Contact us on 01908 563149 for our best available price

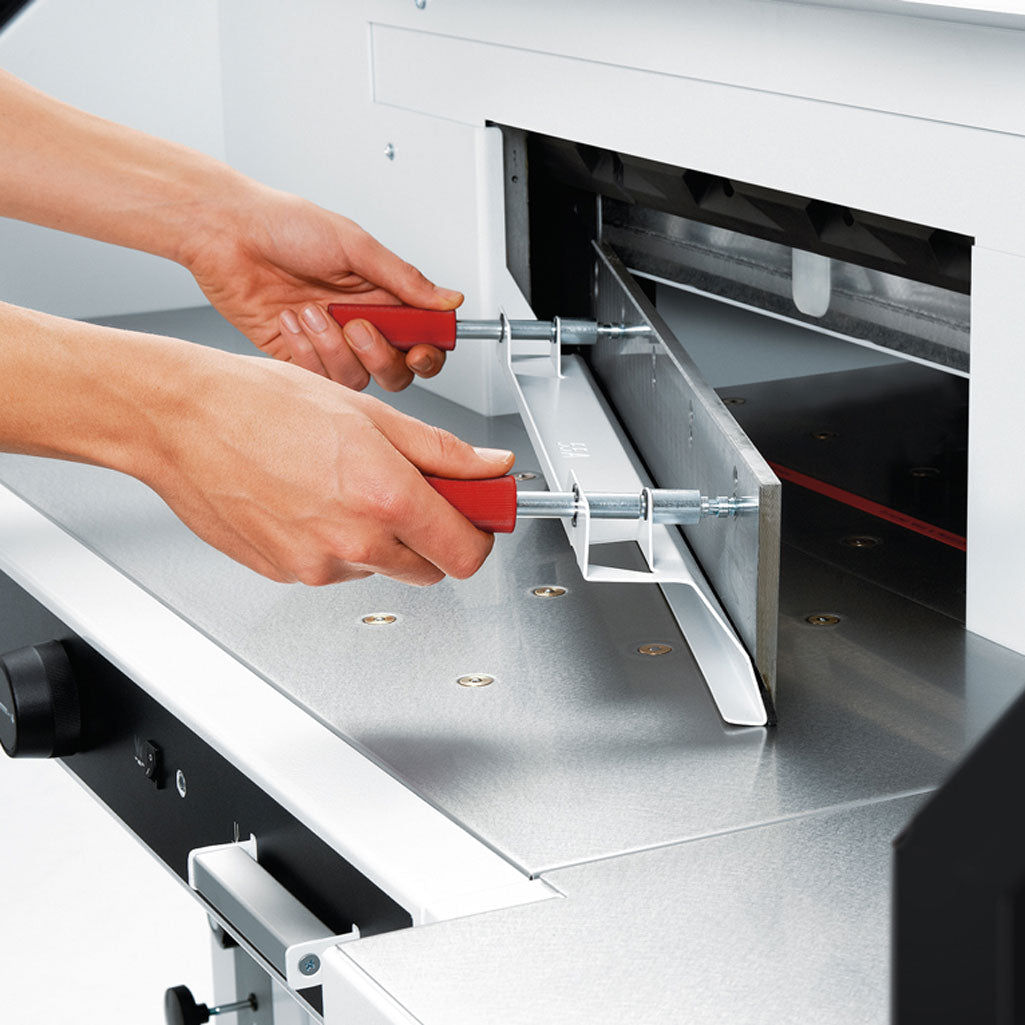

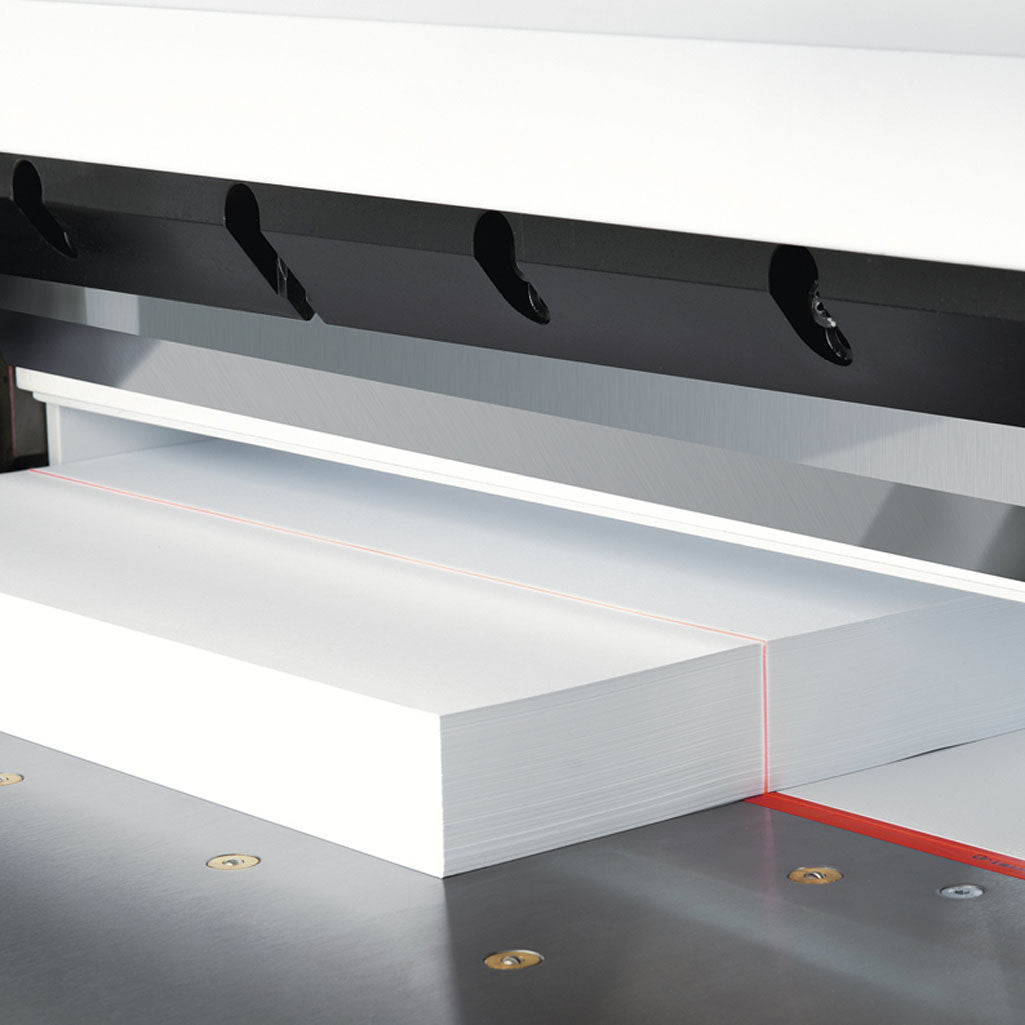

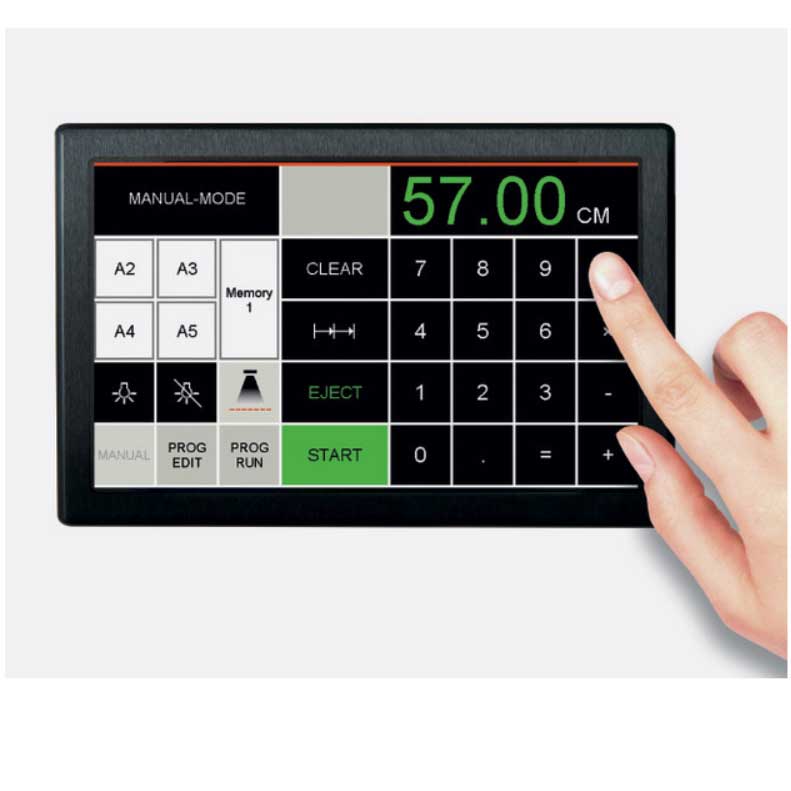

The Ideal 5560LT has all the features of the Ideal 5560 model plus an air table. Hydraulic blade and clamp drive. Equipped with the new, patented EASY-CUT blade activating bars for convenient and safe cutting. Comprehensive SCS safety package: IR light beam safety curtain on the front table; safety cover on the rear table; lockable main switch; electronically controlled true two-hand operation; 24 volt controls (low voltage); safety drive; automatic blade and clamp return from every position; blade changing device with covered cutting edge; blade depth adjustment from the outside of the machine; easy blade and cutting stick change from the front of the machine without removing covers. Foot pedal for pre-clamping or as mechanical cutting line indicator. Optical cutting line with bright and durable LEDs. Electric backgauge drive with touch pad for easy setting, multilingual operator guidance and digital display. Measurement readout in cm or inches (display accurate to 1/10 mm or 1/100 inch). 99 programs with 99 steps in each program (up to 15 repeat cuts can be integrated into a program as one single program step). Program runs automatically. 10-button key pad for presetting of measurement. Pre-programmed measurements for A3 to A6 standard paper sizes. Memory key for repeat cuts. Automatic SET function for reference measurement via start button.

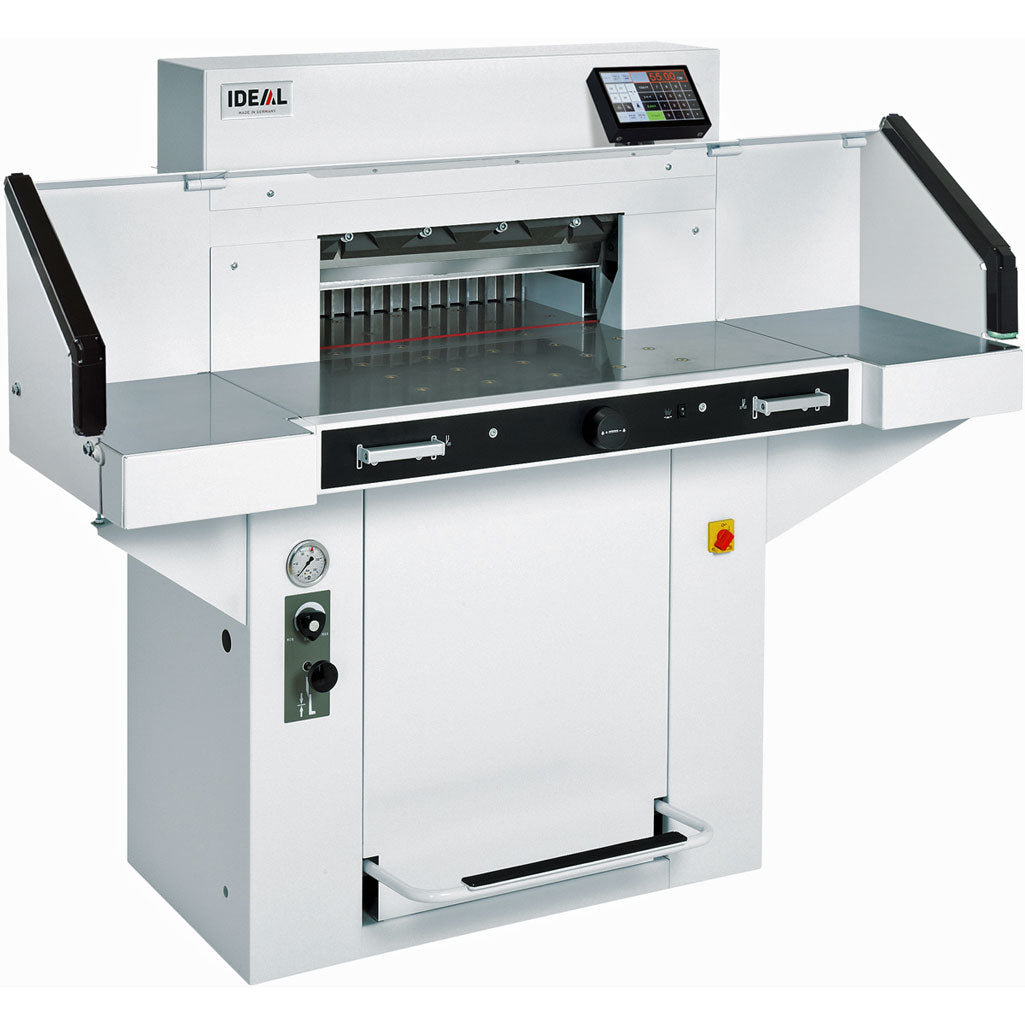

Programmable EJECT function - for pushing out the paper. Self-diagnostic system with error indication on display. Electronic hand wheel for manual backgauge positioning with infinitely variable speed control (from very slow to very fast). Adjusting knob for infinitely variable clamp pressure (min. 200 / max. 1100 daN) and pressure gauge. False clamp plate for delicate work. Solid front table made of die-cast aluminium with stainless steel worktops. Blade made of high quality HSS steel. Hydraulic swing cut for high cutting precision. Die-cast aluminium blade carrier and adjustable blade guides. Aluminium clamp bar. Adjustable blade depth. Sturdy cast iron machine frame. Movable on castors. Complete with practical tool holder and stacking angle. Optional set of side tables (left and right) available at an extra cost.

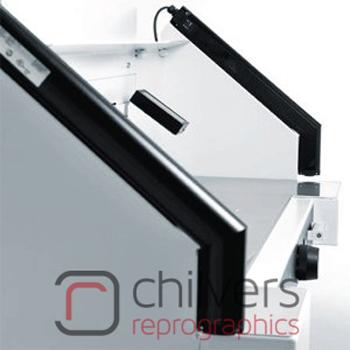

Light beam guards save valuable time and money they are very common on very large guillotines, on smaller electric guillotines a plastic guard is normal. These can really slow down production where as a light beam guard can drastically improve production speeds.

Highlights

• Cutting length - 550mm
• Cutting height - 95mm - 92mm with false clamp
• Narrow cut - 32mm - 60mm with false clamp
• Table depth - 570mm
• Air table
• Power back gauge, electronic hand wheel
• IR safety curtain
• Hydraulic cut
• Hydraulic clamp
• East to use touch pad programming
• Safe blade change
• Optional side tables
