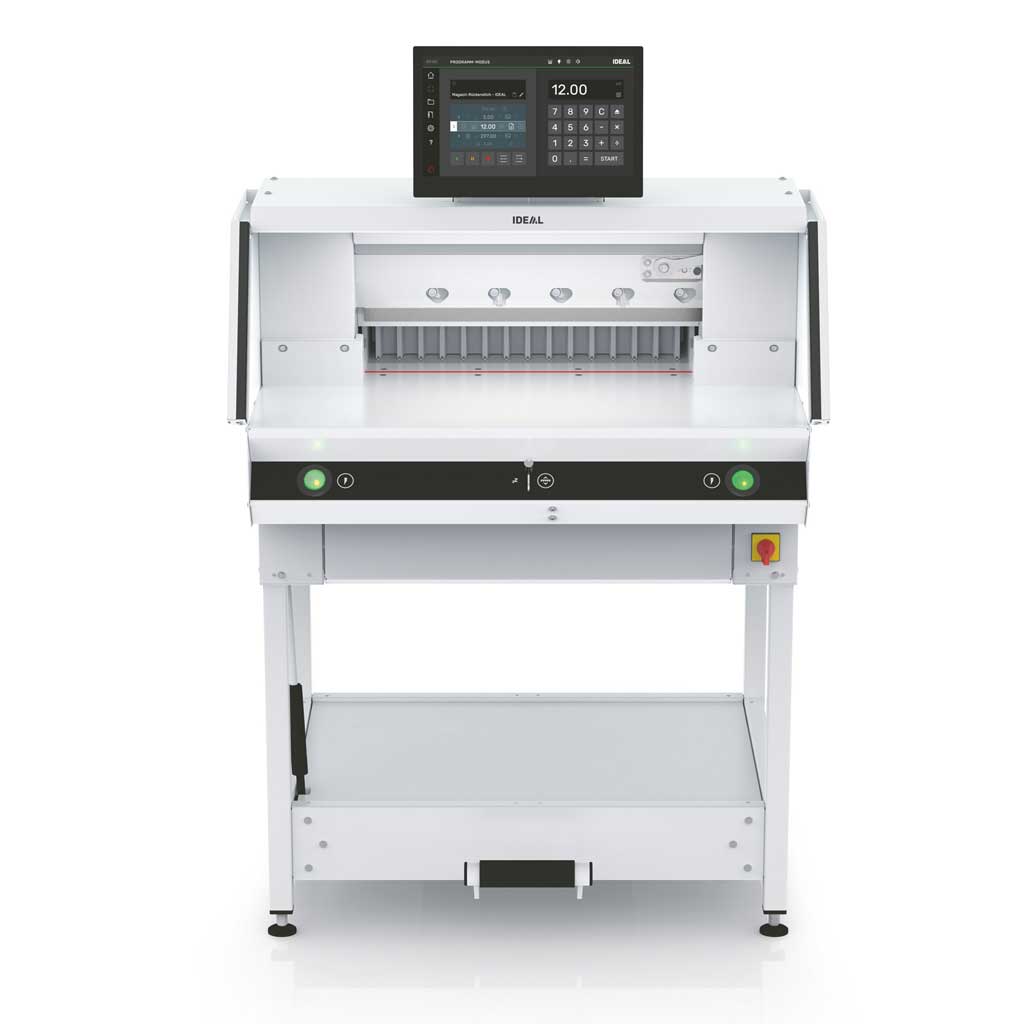

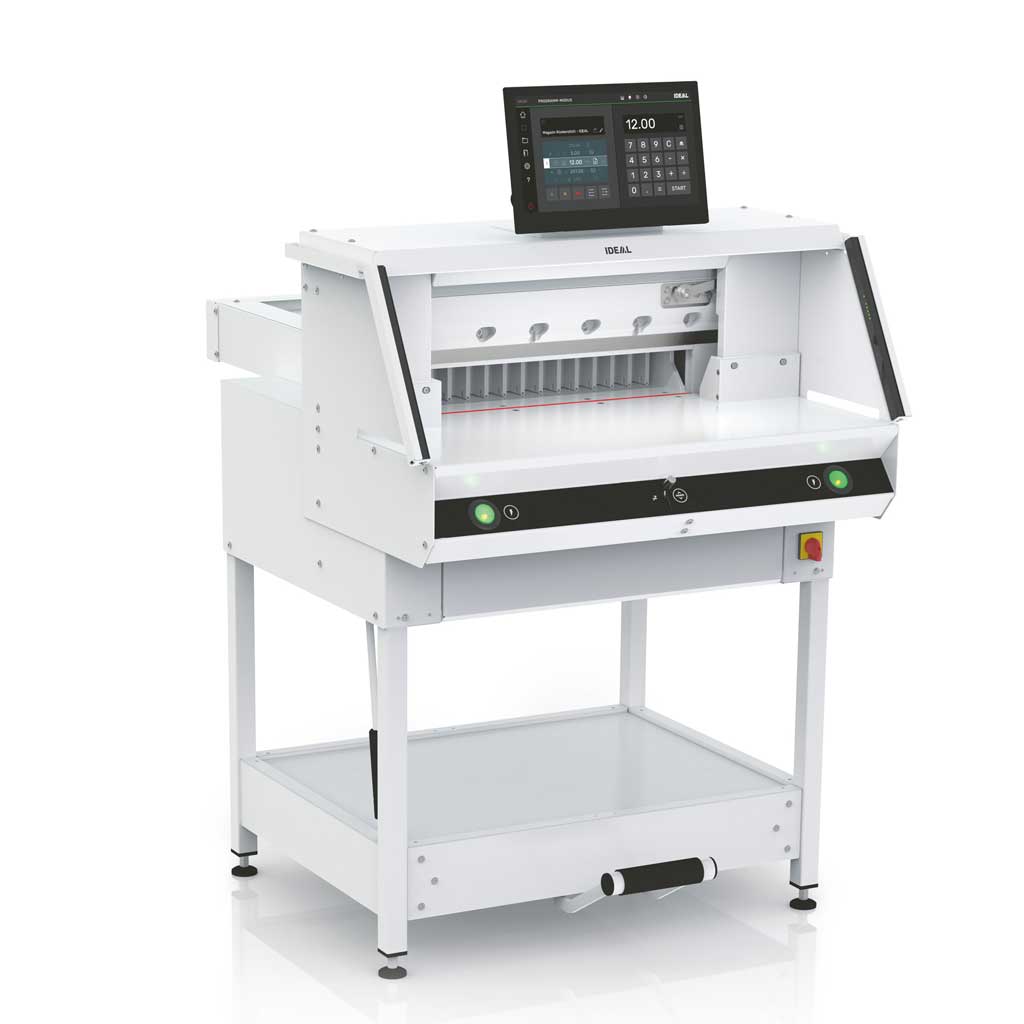

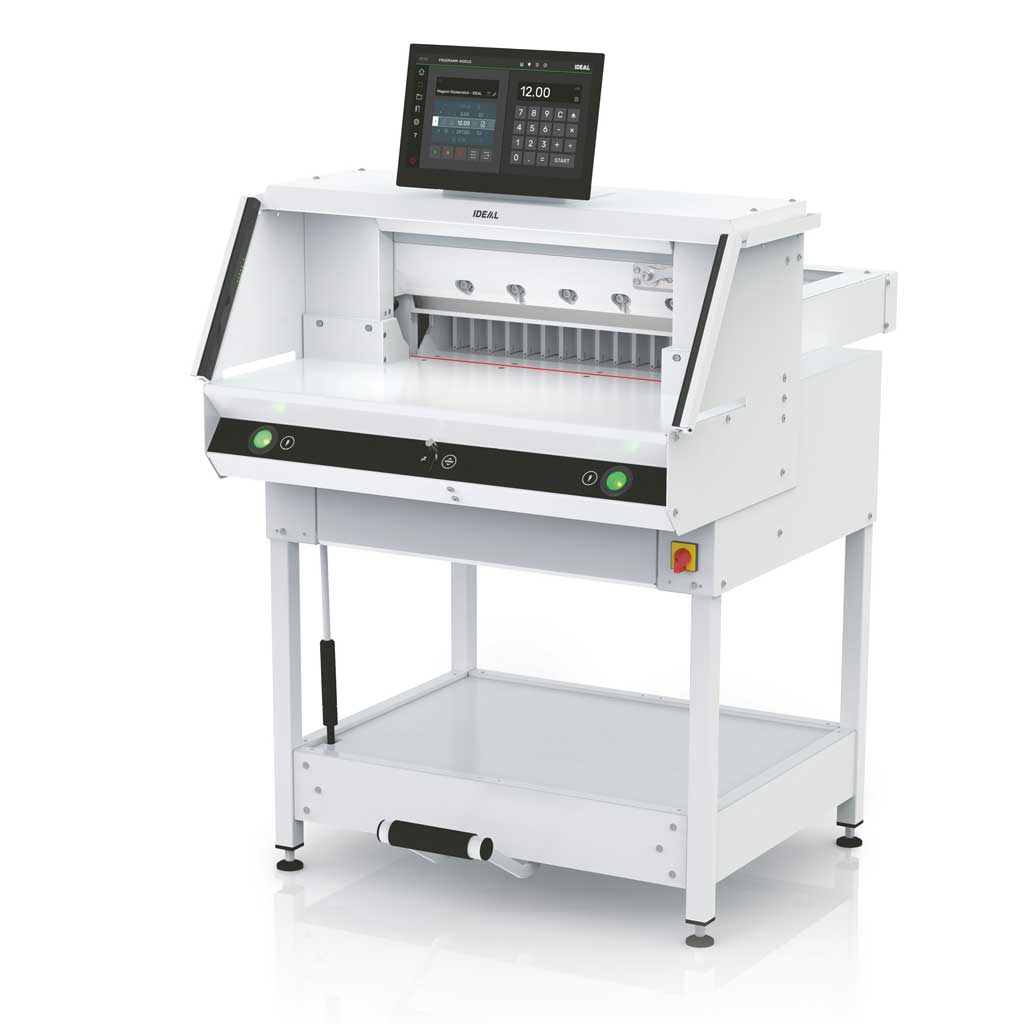

The new Ideal 56's 15.6" giant touch screen ensures innovative control, programming and easy project management operation with its touch and swipe gestures just like a tablet or smartphone. Well-designed digital functions, intuitive controls, and easy to use: This next-generation programmable powered guillotine –increases efficiency and productivity by working smarter. With IR light beam safety curtain and hydraulic clamp drive.
Fully adjustable to user needs, with a cutting width of 560mm and a stack height of 80mm. This provides for increased operator efficiency and productivity by working smarter from the tablet-like display. The product incorporates an electro-mechanical precision blade drive and hydraulic clamp drive, along with an IR light beam safety curtain.
Both programmable and manual back-gauge positioning are available, with a table depth of 560mm. The adjustable back-gauge can be used with narrow separations and plastic gliders. The clamp-bar has infinitely programmable adjustment for total control of the required clamping pressure, which can be entered via the touchscreen. An electronically controlled false clamp plate, ideal for delicate work, optimises the distribution of the clamping force where required.

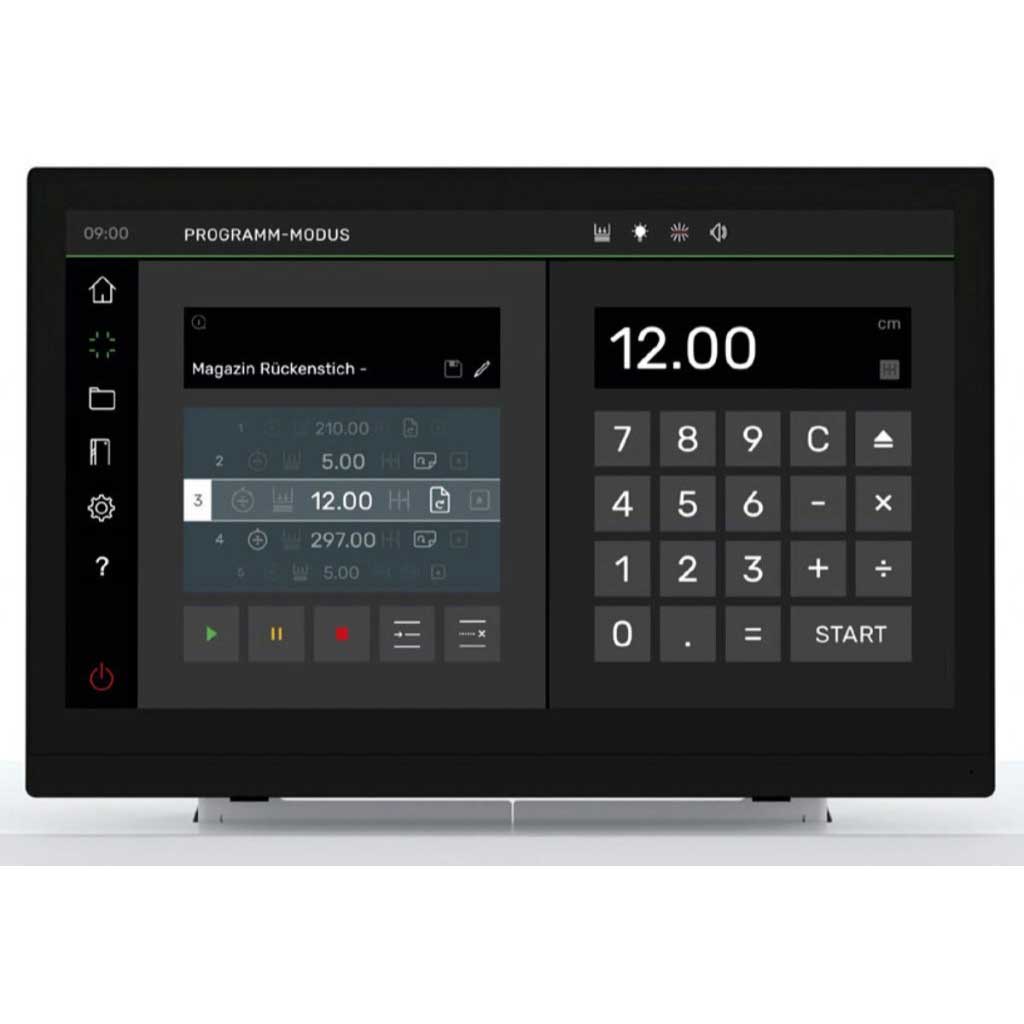

15.6“ MULTI-TOUCH DISPLAY Functional graphical user interface for intuitive tablet-like work and clear main screen with intelligently split display. The tilt adjustable display can be ergonomically adapted to body height and lighting conditions.
SCS SAFETY PACKAGE Maximum operator safety and cutting convenience: Electronically controlled IR light beam safety curtain on the front table – with status indication (red/green) in the display and the blade activation buttons ensuring safe two hand cut release).
EASY-TOUCH CUT ACTIVATING Safe true two-hand operation: A cut can be executed conveniently and safely by means of the EASY-TOUCH blade activating buttons with integrated optical signals indicating the operational status.
CUT CONTROL Completely transparent: In the separate program editing window, the current cutting programme is displayed with the respective programme steps. The separately editable individual steps are numbered consecutively and the display runs while the steps are being processed.
PRECISION DRIVE The manual fine adjustment of the backgauge ensures maximum precision with clean edges with every cut – user-friendly via the ergonomic control element at the front of the machine.
HYDRAULIC CLAMP The hydraulic precision drive is not only precise, but also very convenient: the clamping pressure is infinitely adjustable and programmable via touch.
SAFETY CUTTING SYSTEM (SCS)
IR light beam safety curtain
Two handed blade activation
IDEAL safety drive
Safe exchanging of blades
Blade depth adjustment from the outside
Restricted access via password protection
Dimensions H-1334mm (without touch screen) x W-979mm x D-1211mm / weight 303kg

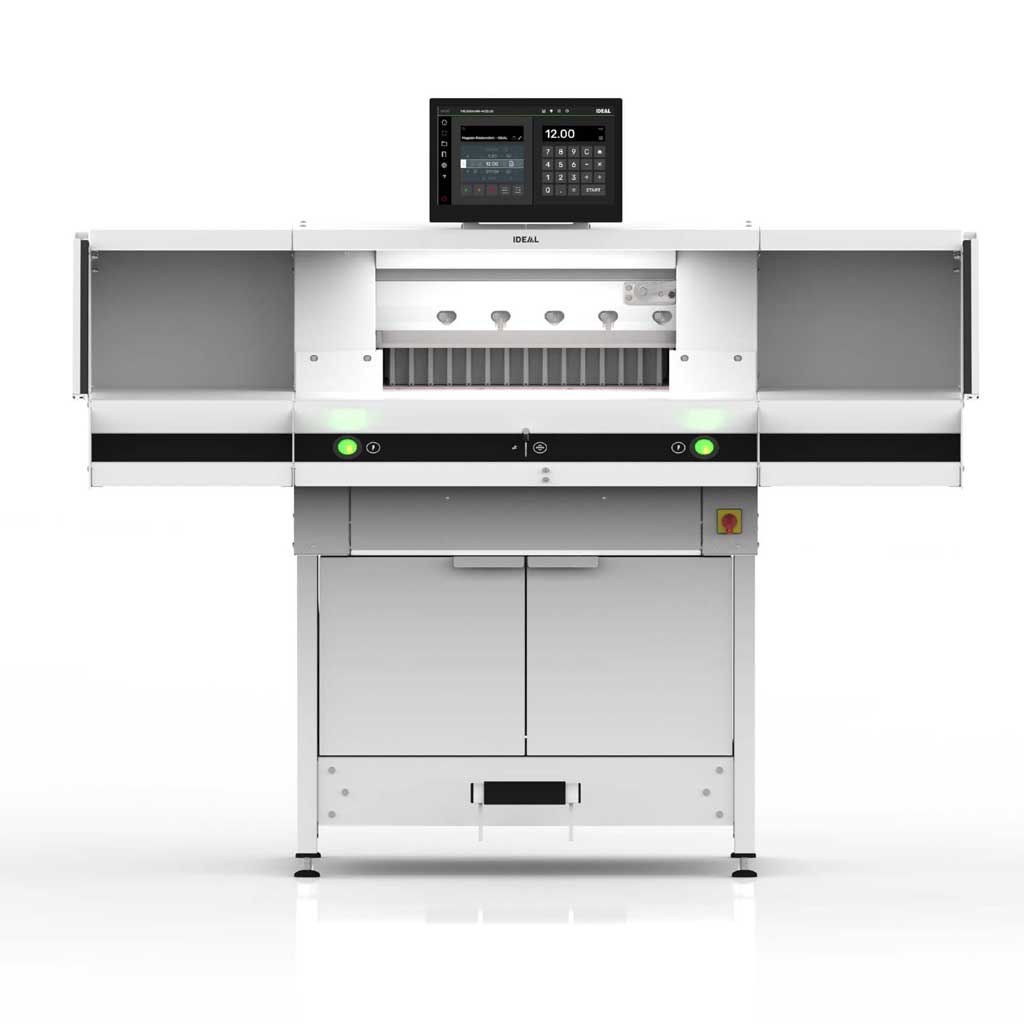

Dimensions with side tables W-1779mm
