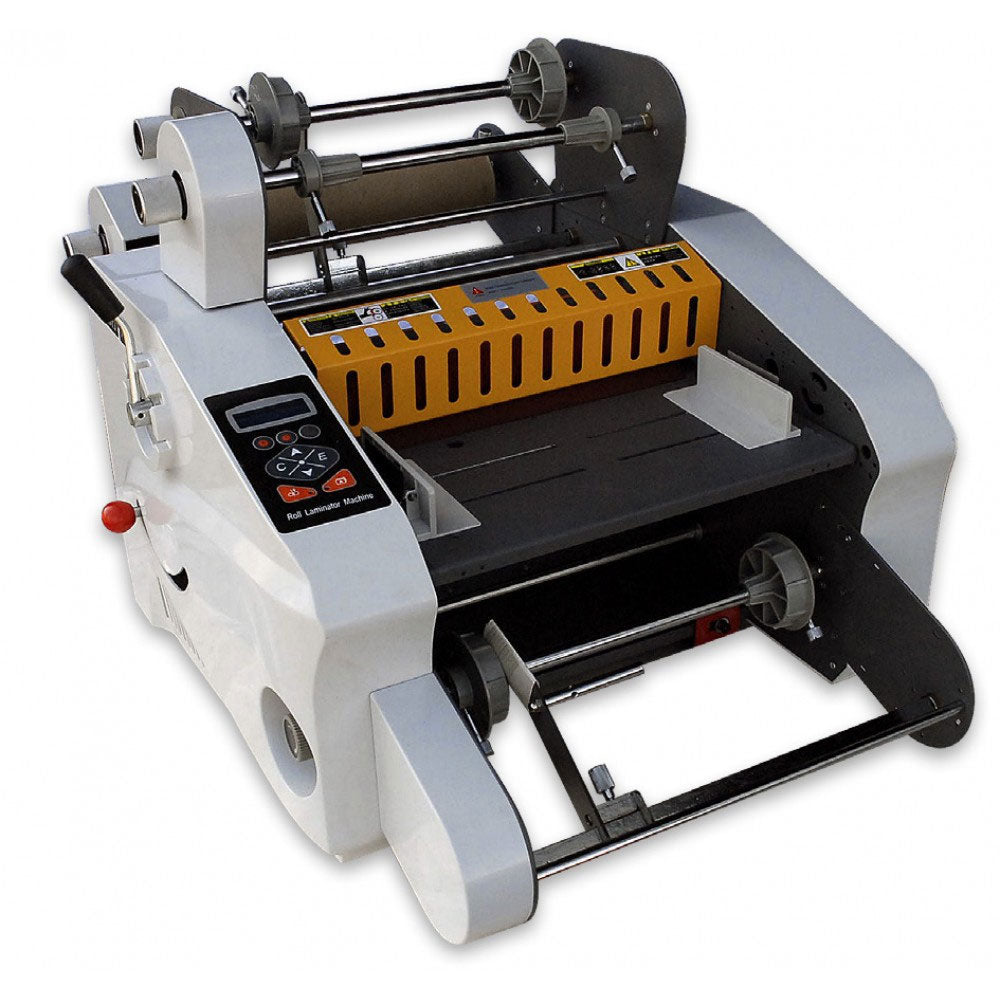

The MultiLam Foil FX is an easy to use, high speed, compact desktop laminating machine. It requires no special training or tools and offers very high quality single + double sided laminating using gloss, matt or soft-touch film whilst also incorporating the ability to foil on sheet sizes up to SRA3 all for an unbeatable price.
It has a high capacity re-winder on the machine exit which can be used to create the latest foiling and sleeking effects, known as dry coating. This technology is all about adding value, offering effects normally associated with specialist processes, now you can quickly and easily add many bespoke touches to your digital print work. There are many foil colours available including Gold, Silver and holographic effect. Foiling is cost effective in comparison to more expensive traditional foiling methods where a die block is required.
These stunning metallic foiling finishes are typically used on packaging, business cards, certificates, gift vouchers, stationery, book covers, security print, wedding stationery and high end bespoke print giving that 'wow' factor. Using this system there is no pressure denting to stock as with traditional block foiling method.
Operators are assured control of the Multi-Lam series with the integrated table sensor, this Infrared Sensor is located directly before the Chrome Impact roller and will stop the machine if a sheet is not present at the input, this simple mechanism ensures that you cannot run the machine without material passing through. The importance of this mechanism becomes clear on single sided laminating applications as without media in the machine the film exposes to the lower roller and wraps around creating a costly and awkward to remove jam on the machine. Standard desktop machines do not have this mechanism which makes them more difficult to use and much slower to ensure that sheets can be fed reliably to avoid errors.
- High powered infrared thermal heaters (1,400 Watts)
- Heavy duty chrome impact laminating roller, ensures perfect temperature control at all times
- High capacity film holders for up to 500 meter rolls of TigerBond (Top + Bottom)
- Infrared sensor on tray stops machine if no paper is fed, preventing jams or miss-feeds
- Stock size up to SRA3 and up to 400gsm
- Built in rewind roller on rear of machine to enable foiling
- Capable of single + double sided laminating
- Encapsulation also possible for sheets up to 330mm wide + films up to 250 Micron
- 18 stage anti-curl bar with patent roller technology to avoid scratching
- Built in perforator on top + bottom film roll, enables easy sheet separation in delivery
- Clear LCD Display with touch button control
- Independent speed + temperature control
- High speed production, laminating up to 4.8 meters per minute / 480 sheets per hour
- Ideal for laminating both Litho or Digital printI ju
- Manual feed with infeed paper sensor
- 25mm + 77mm Core adaptors included
- 62kg / W-545 x H-640 x D-730mm
Note - Foiling is not possible on uneven surfaced or uncoated stocks.
Foiling is Ideal for - Business Cards, Gift Vouchers, Certificates, Greetings Cards, Book Covers, Presentations, Invitations, wedding stationery, packaging etc
LOOKING FOR LAMINATING ROLL / FILM / FOIL? Click Here.
Short video below of the MultiLam Foil FX set up for foiling.
