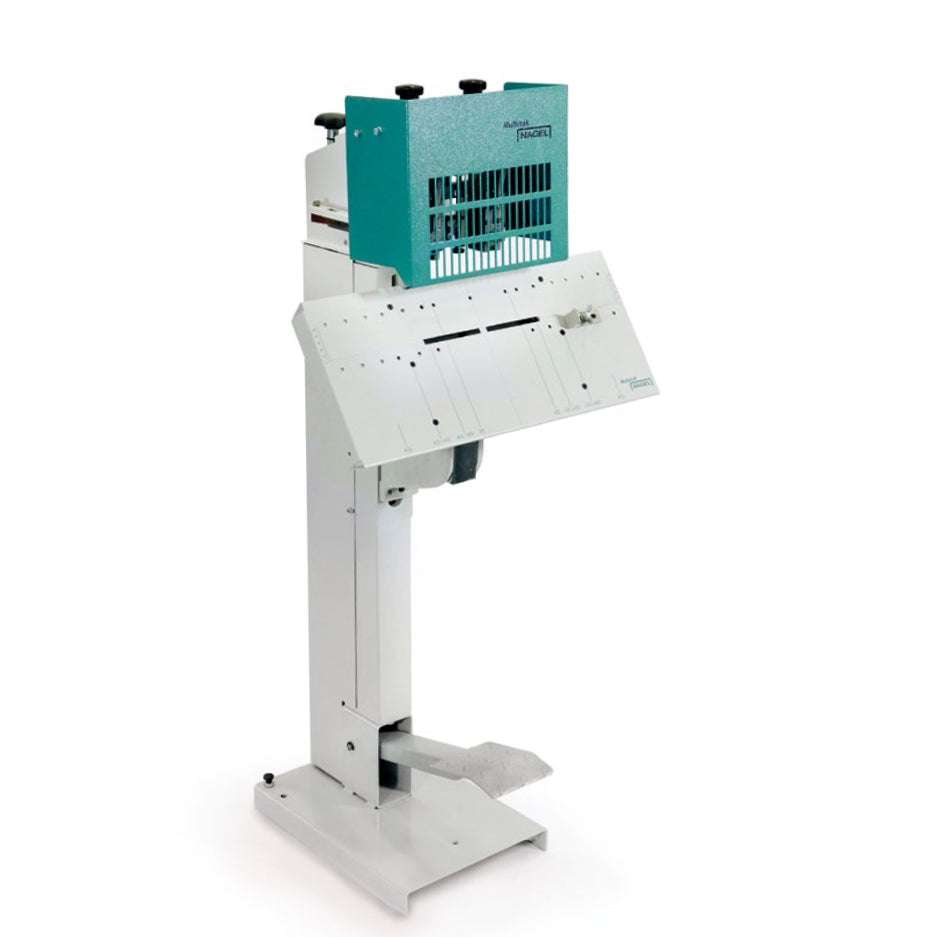

Nagel Multinak FS Heavy Duty Stapler

Download PDF

The Nagel Multinak FS is a twin-headed stapler that staples booklets and pads up to 27 mm. The machine is particularly efficient when it is used for frequently changing rung lengths. Its versatility and durability have made it indispensable to the graphic arts industry. The change from flat to saddle stapling is done by simply flicking over the table.

The precision stapling heads ensure a high reliability; all wear parts can be easily replaced. Mobile clenchers press the staple ends flat against the paper to ensure strong, perfectly formed stitches.

The Nagel Multinak FS can process 5 different staple gauges, including loop staples. Alternative stapling heads are available for pads between 15 and 27 mm. The distance between centres is adjustable between 80 and 155 mm.

The model Nagel Multinak FS is designed for those working on a smaller budget. Treadle operated, it will handle the same document thickness as the powered version. For longer runs we recommend the powered model Nagel Multinak S (with a silent special gear motor).

• Treadle operated twin head stapler.
• Saddle stapling for booklets or pad stapling.
• Easy set-up for job thickness.
• Only requires light foot pressure even on thick pads.
• Distance between heads 80-155mm
• Takes 6-18mm staples with standard A heads (approx 170 sheets).
• Stab stapling from both sides of the pad approx 270 sheets.
• Will take loop staples ideal for use with ring binders (with A heads).
• The Nagel FS is capable of stapling up to 27mm pad thickness with optional B heads.
• Power clenching for flat staples.
